COB style LED lights don't show the bulbs, they tend to be tighter and the light is more even and less of a dot-per bulb.  People make signs with this stuff and it is a creative, bendable art-form for some.  I used RED as a third brake light at the bottom of the rear window.



NOTES:

•The wiring harness was re wrapped completely and I added the extra brake light wire coming directly form the brake light switch (it is positive).

•The ground went to the back-pad light ground.

•All wires were cloth-tape wrapped and crimped, shrink-wrapped and otherwise dressed well.

•The COB light was ordered on-line for around $10.00 for 3 meters.  I used about 1/2 of it.

•The COB light has a rubber channel sitting on top of it to prevent red-glare when breaking in the rear glass.  The rubber was a C-Channel that I converted to L-Channel by trimming-off one side of it with a metal yardstick.

•The COB light and rubber L-Channel are held against the glass with strips of Kydex that were black-silicone glued into place and topped with black Gorilla Tape and then black electrical tape.

•Once the back-pad is in, it presses that even tighter against the glass.  I get no red glare at all in the daytime when using the brakes



Brake Light Switch - The black wire with the green stripe runs through the harness to the back-pad and then to the passenger-side glass to connect with the + of the COB light strip.  It draws under 1A and the tail-lights / brake lights are also LED to lighten the load by perhaps 80%..

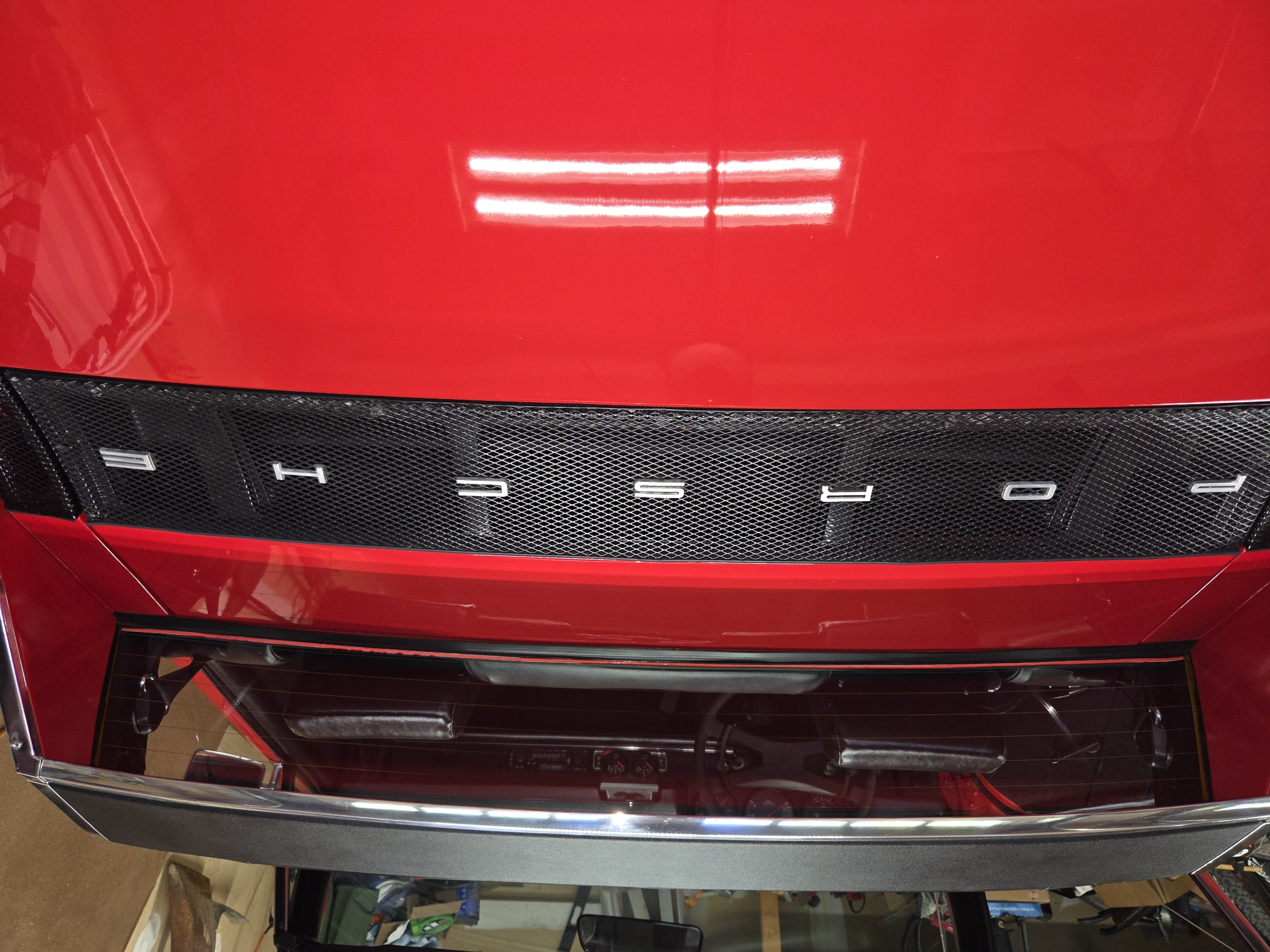

Note the RED line at the bottom of the glass, that is the COB light:

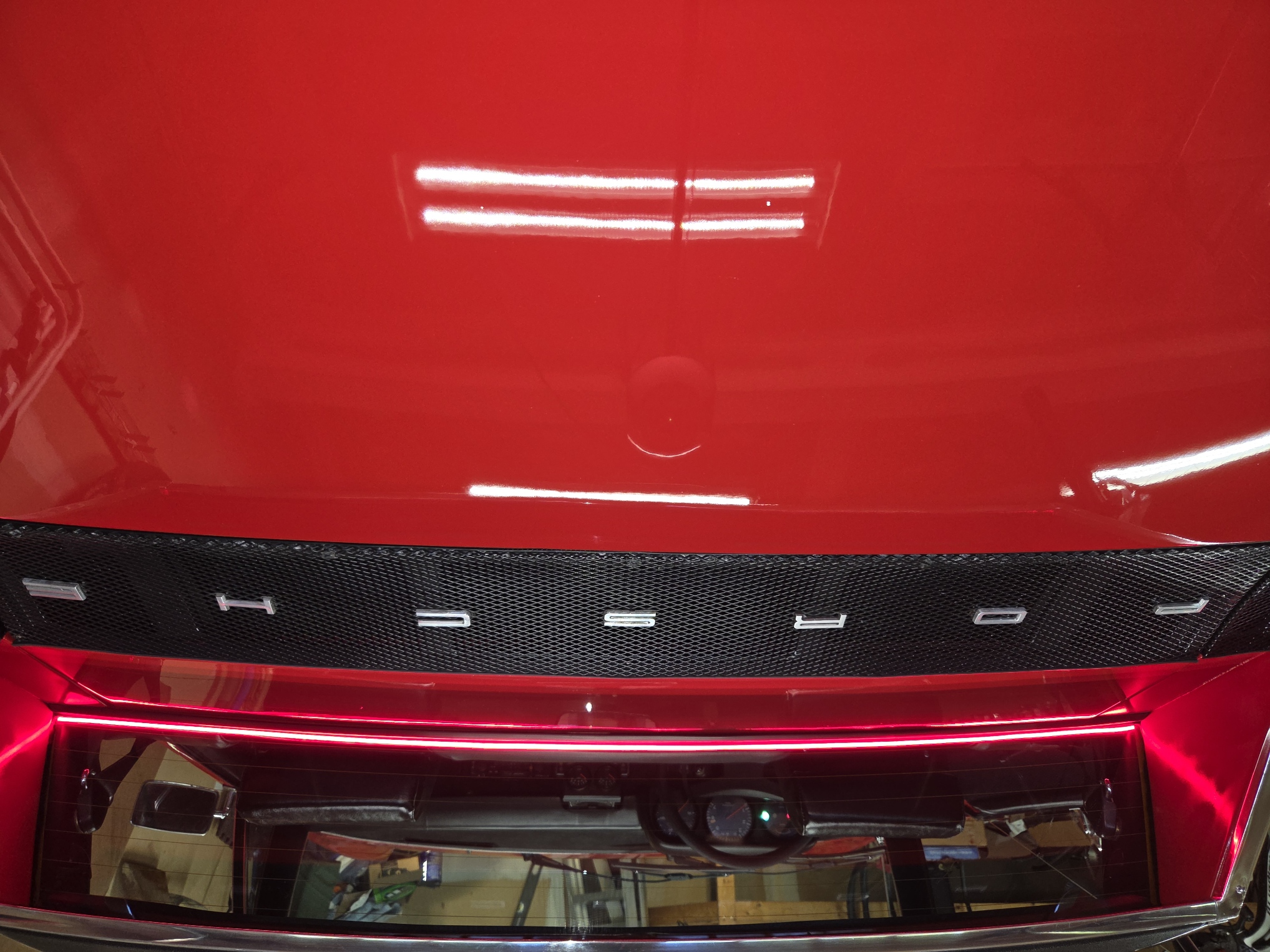

With the brake light ON:  It is bright during the day and SHOUTING BRIGHT at night.

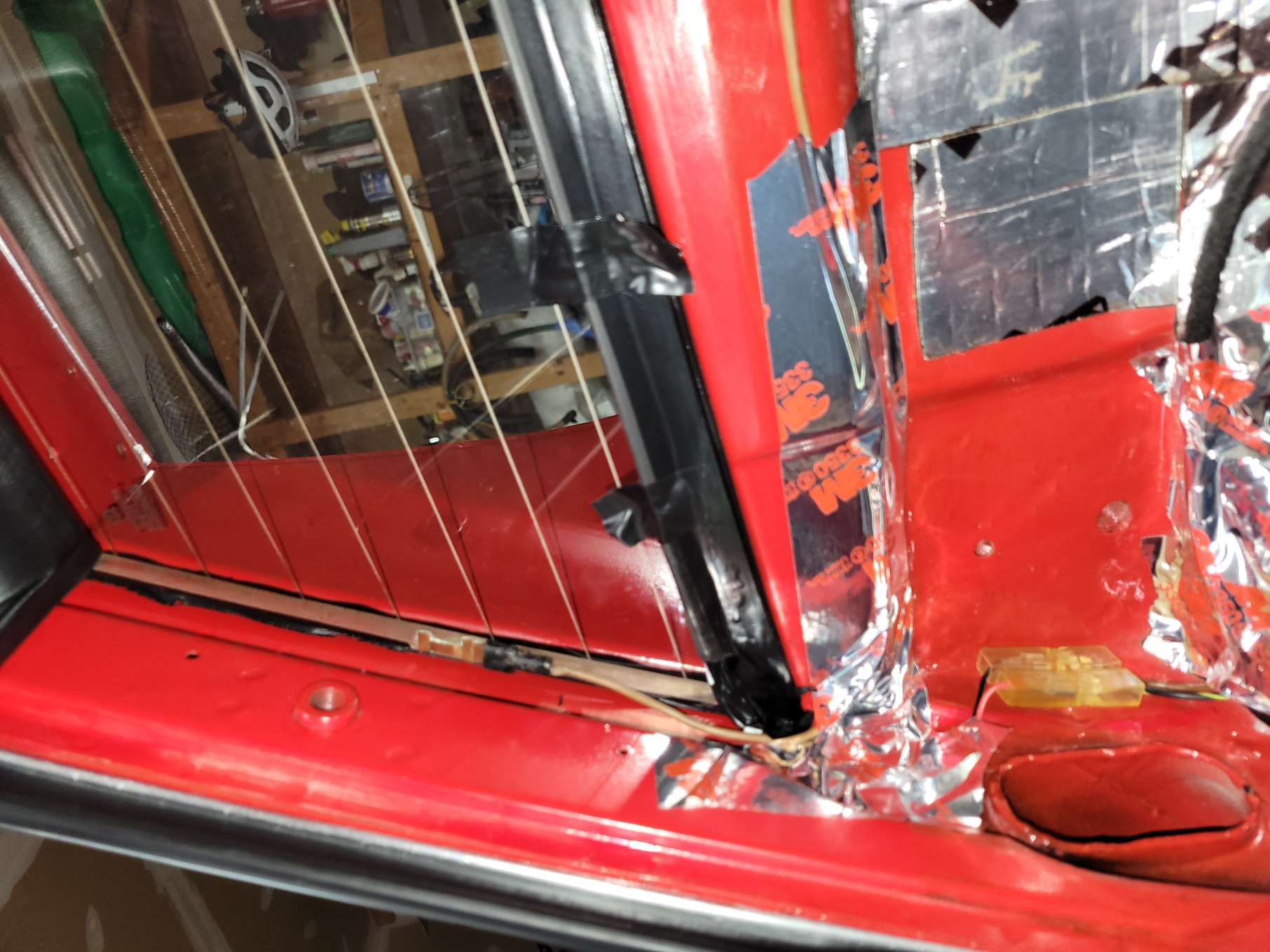

The back glass with the COB light taped-in-place.  This is before the Kydex plastic pieces to press it into the glass.  Note the double VW connector for the wires on the left (next to the door vent hole).  You can also see the fresh butyl rubber seal in the rear glass (yeah, that is the defrosted window because my 74' car was from Canada).

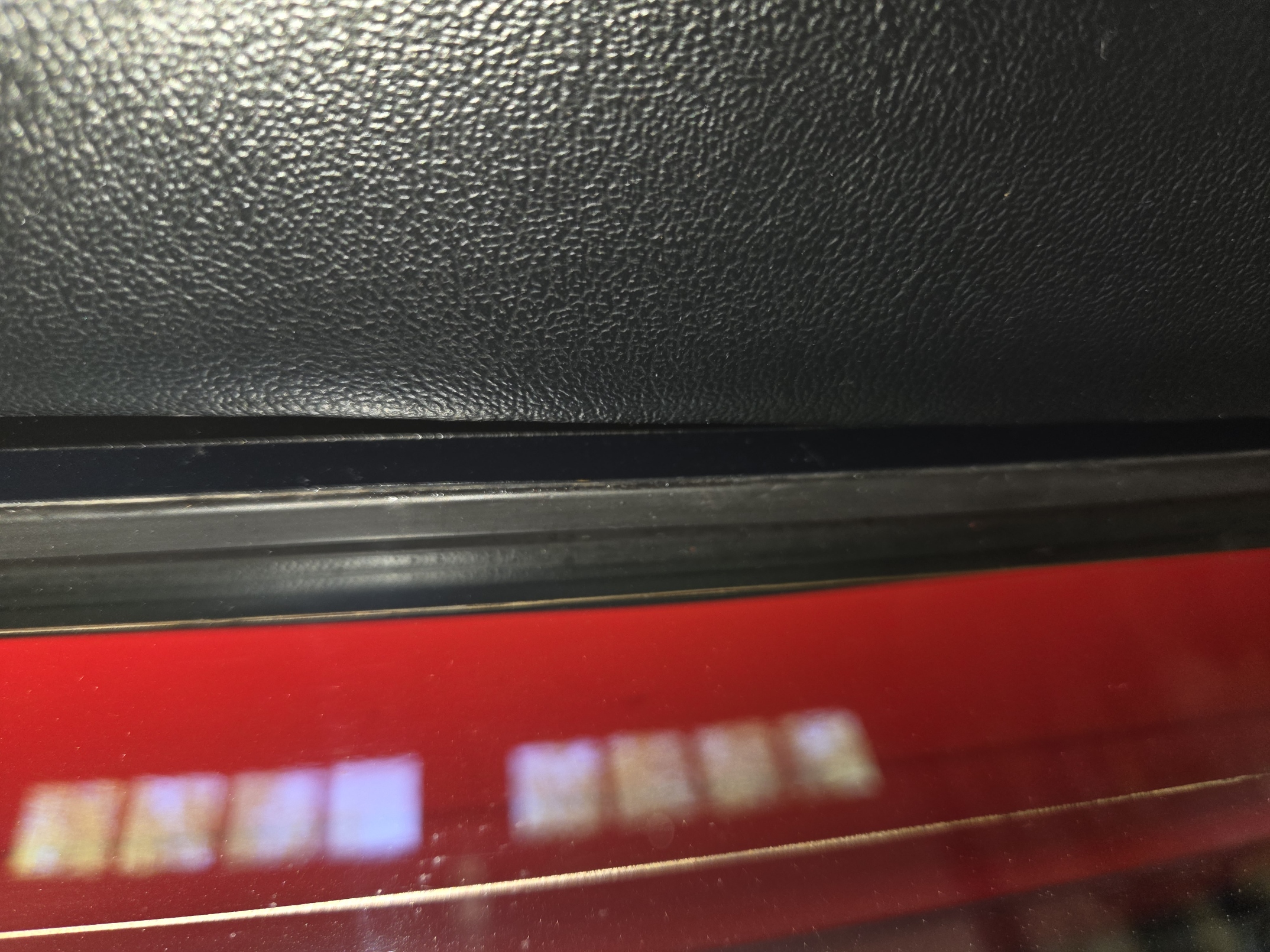

Interior view with back-pad holding the black electrical tape over the Kydex in place:

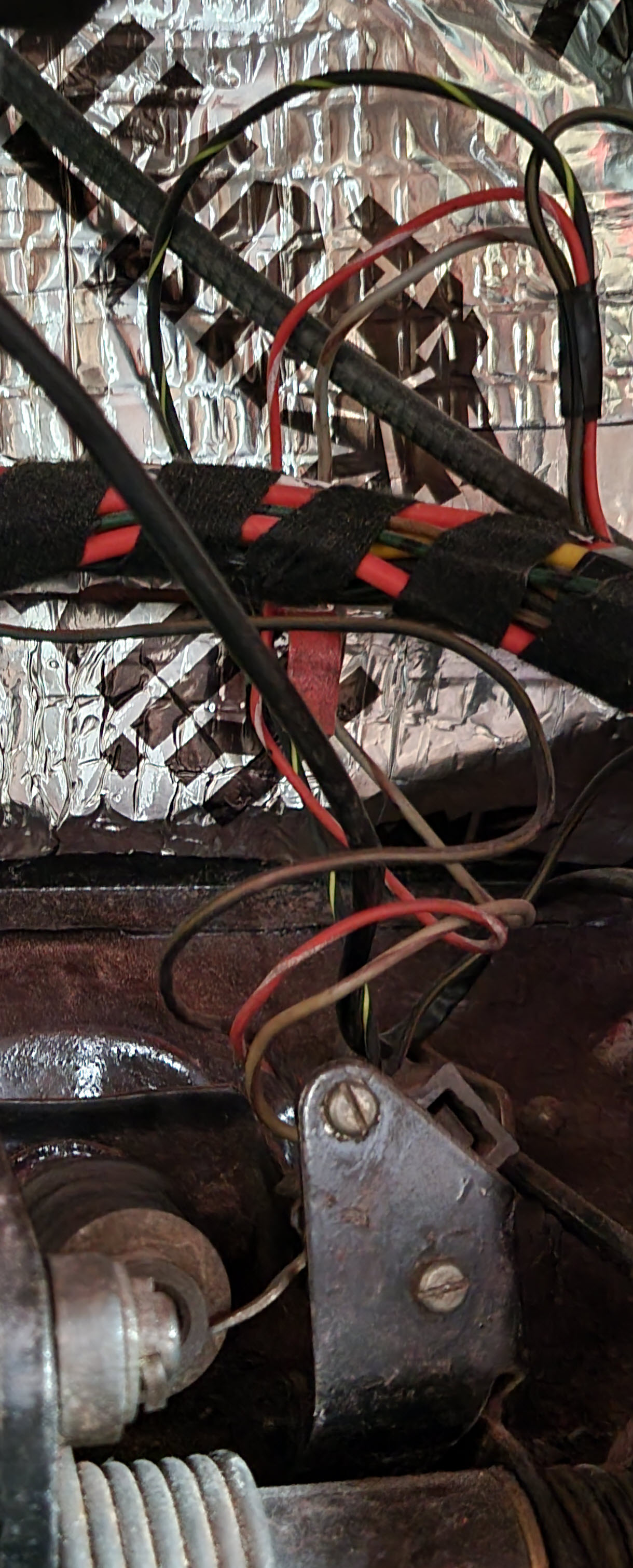

Brake light switch has the black with green stripe wire added and that runs through the harness to the passenger-side of the glass for the + side of the COB light.  You can't see it, but it is just a piggy-back connector on the switch and I tend to cover those in shrink-wrap to add some extra protection against shorts.
