Rear Trunk Hinges

Scroll Prev Top Next More

Repaired and properly re-welded.  Note the grease fitting in the pivot bolt.

HingeGreaseFittingRear

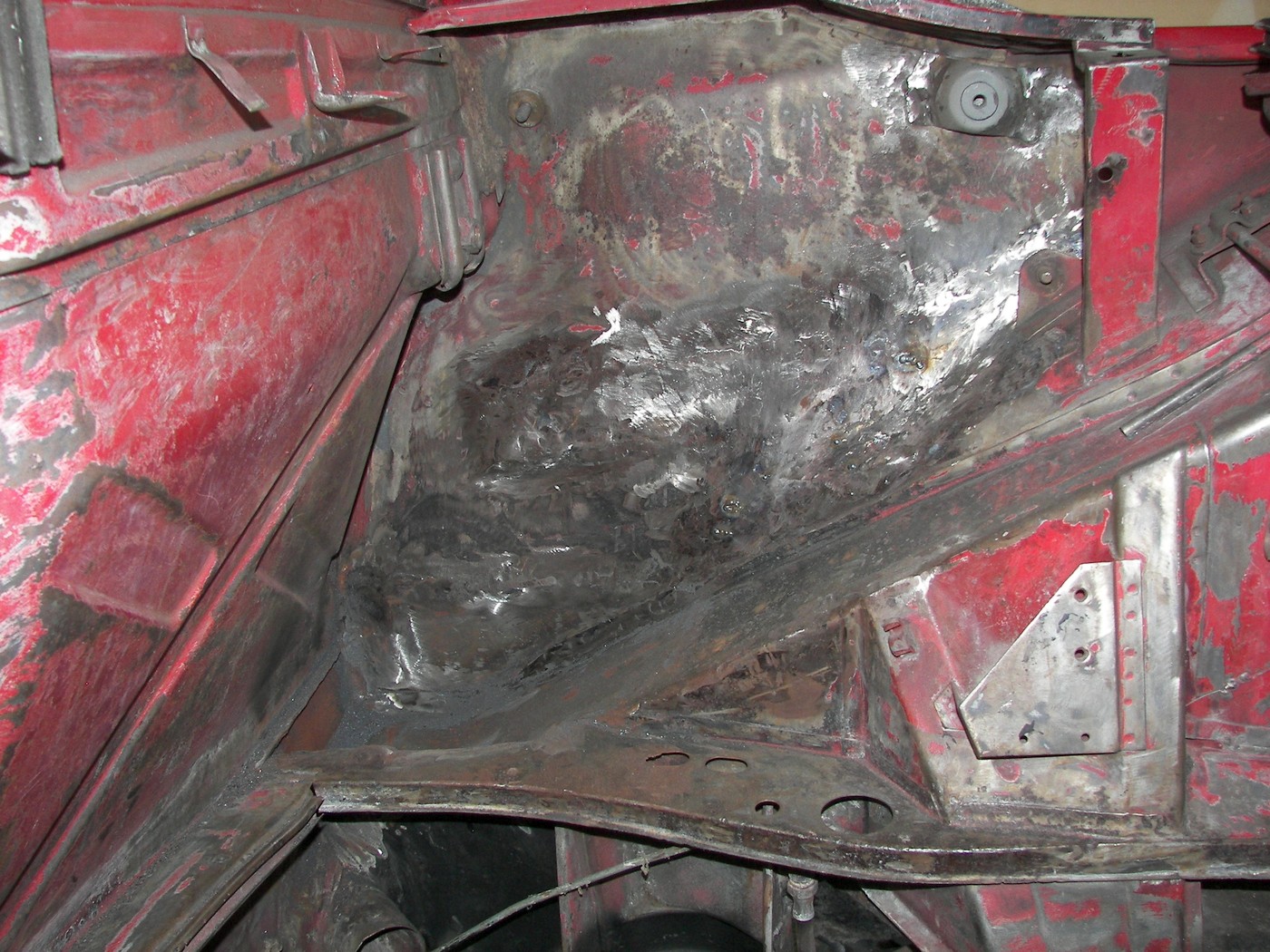

Passenger side repaired.  Not shown, driver's side is about the same.  Measure from firewall o center first.  Notice how the hinge mount hugs the tray above it.

PassengeBatteryTrayWall

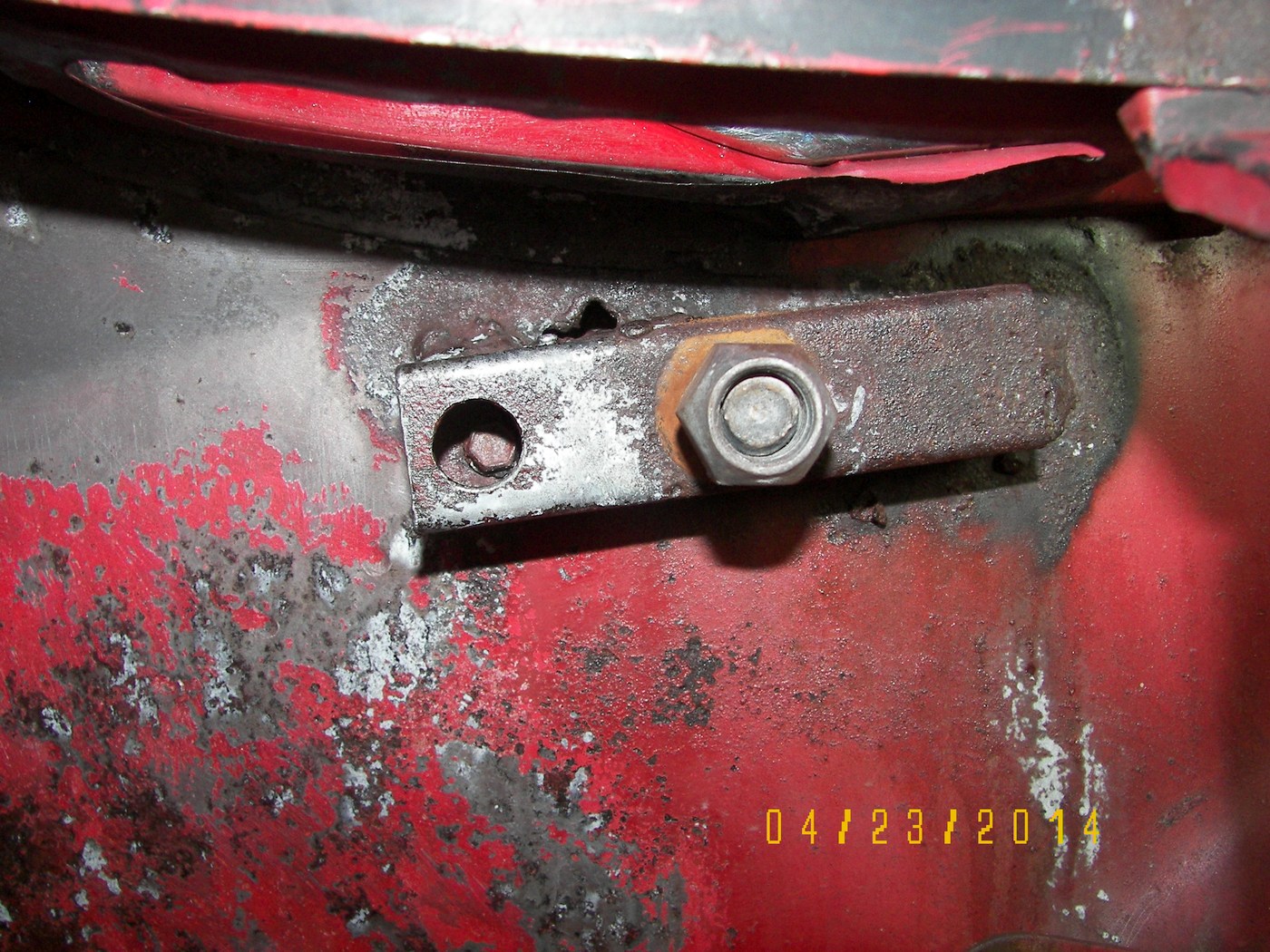

The prior owner had an interesting combination of rigged hinges that were repaired.  This is the passenger hell-hole side:

PassengerSideHinge

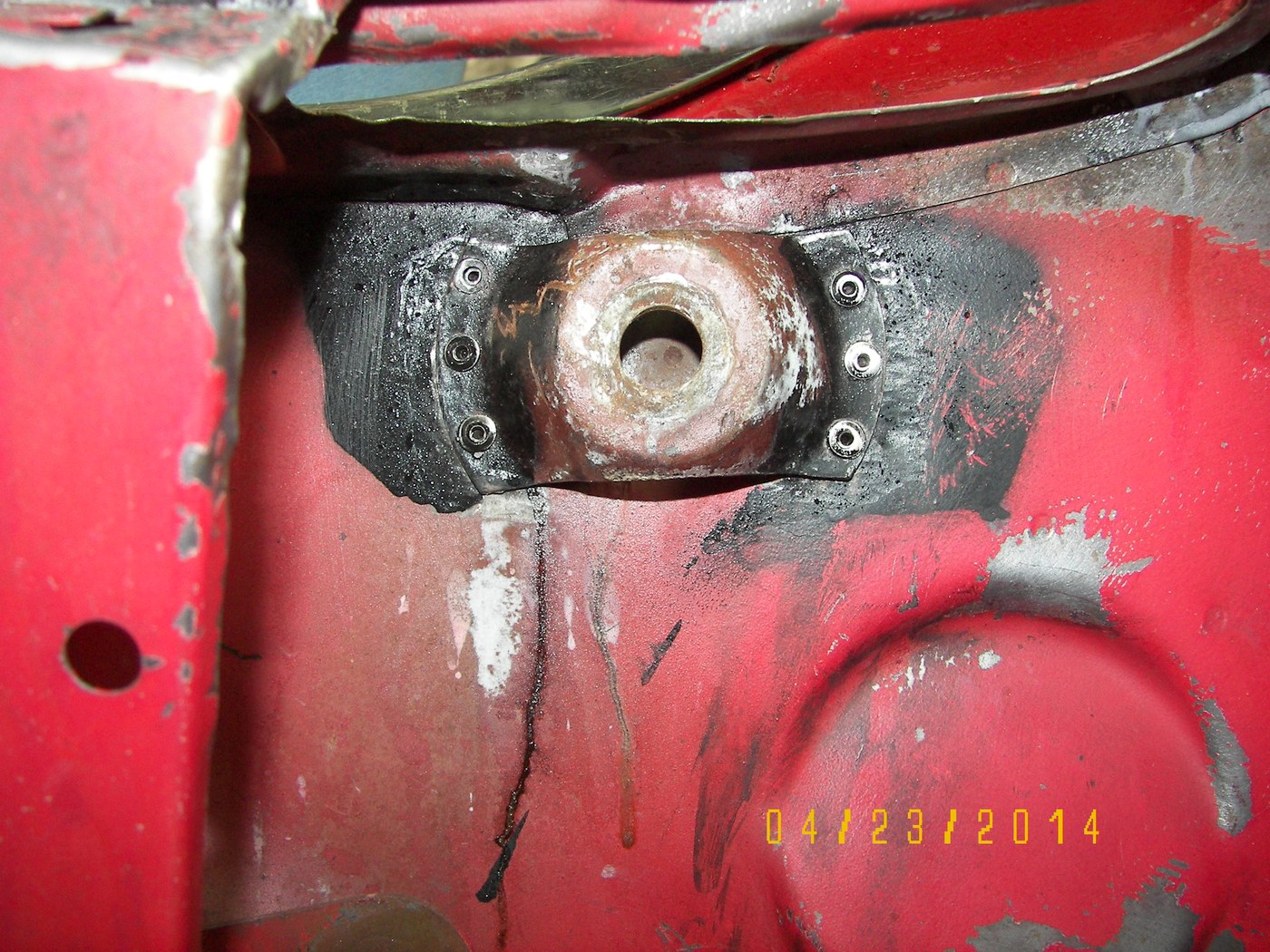

This is the driver's side with creative pop-rivets:

DriverSideHinge
