Side-Marker Turn Signals

Scroll Prev Top Next More

The turn-signals are in the front of the car and they do not blink on the side-markers.  I decided to make the side markers blink to a new bulb and retain the original side marker light.  This is a very inexpensive LED item, it just takes some time to fish the looping wire and to setup the circular LED.

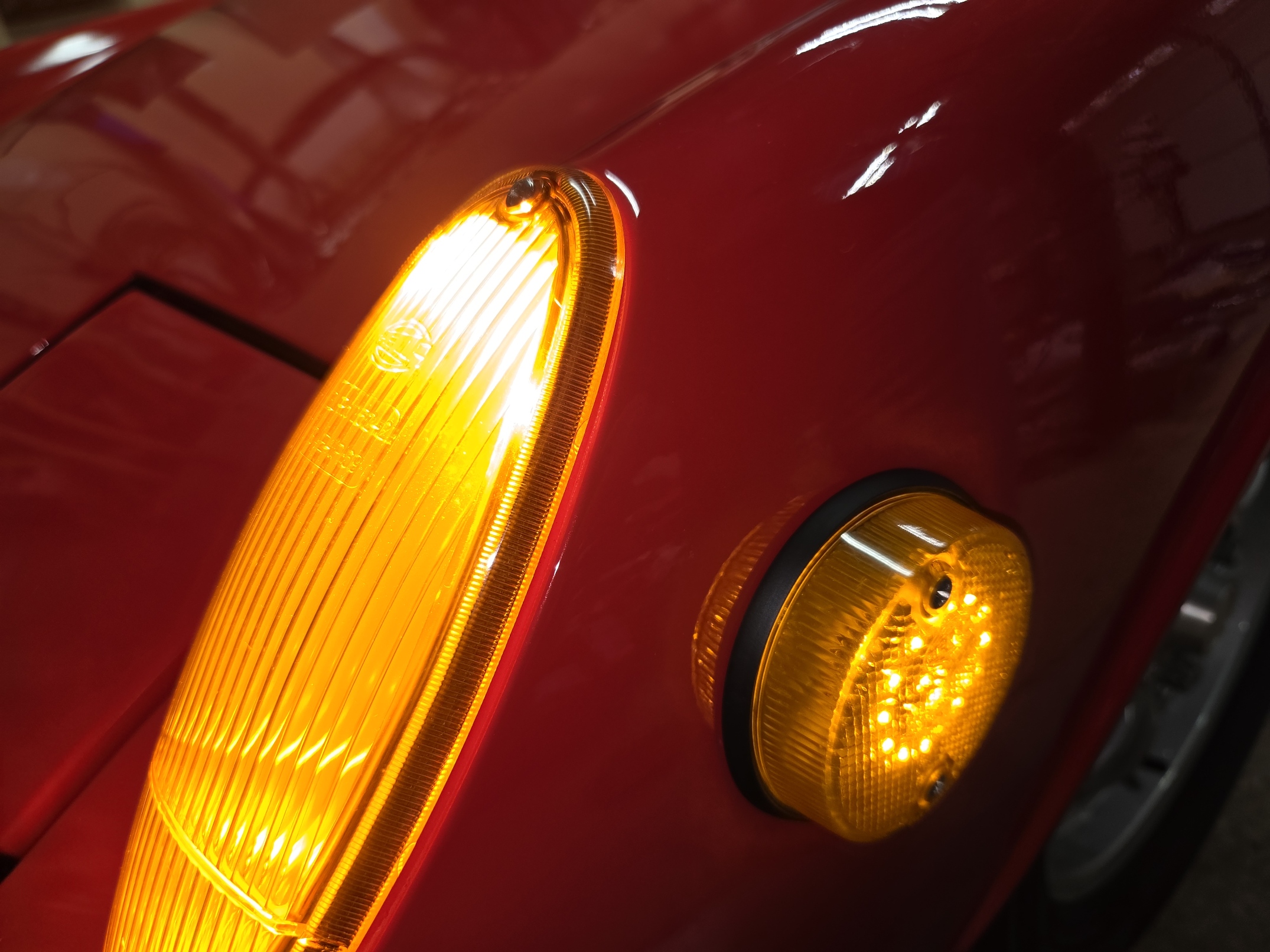

Lights are on AND the turn signal blinker circle is in a FLASH-ON mode.  The center of the side-marker still has the running light on (center of the side-marker).

SideMarker-and-turn-signal-ON

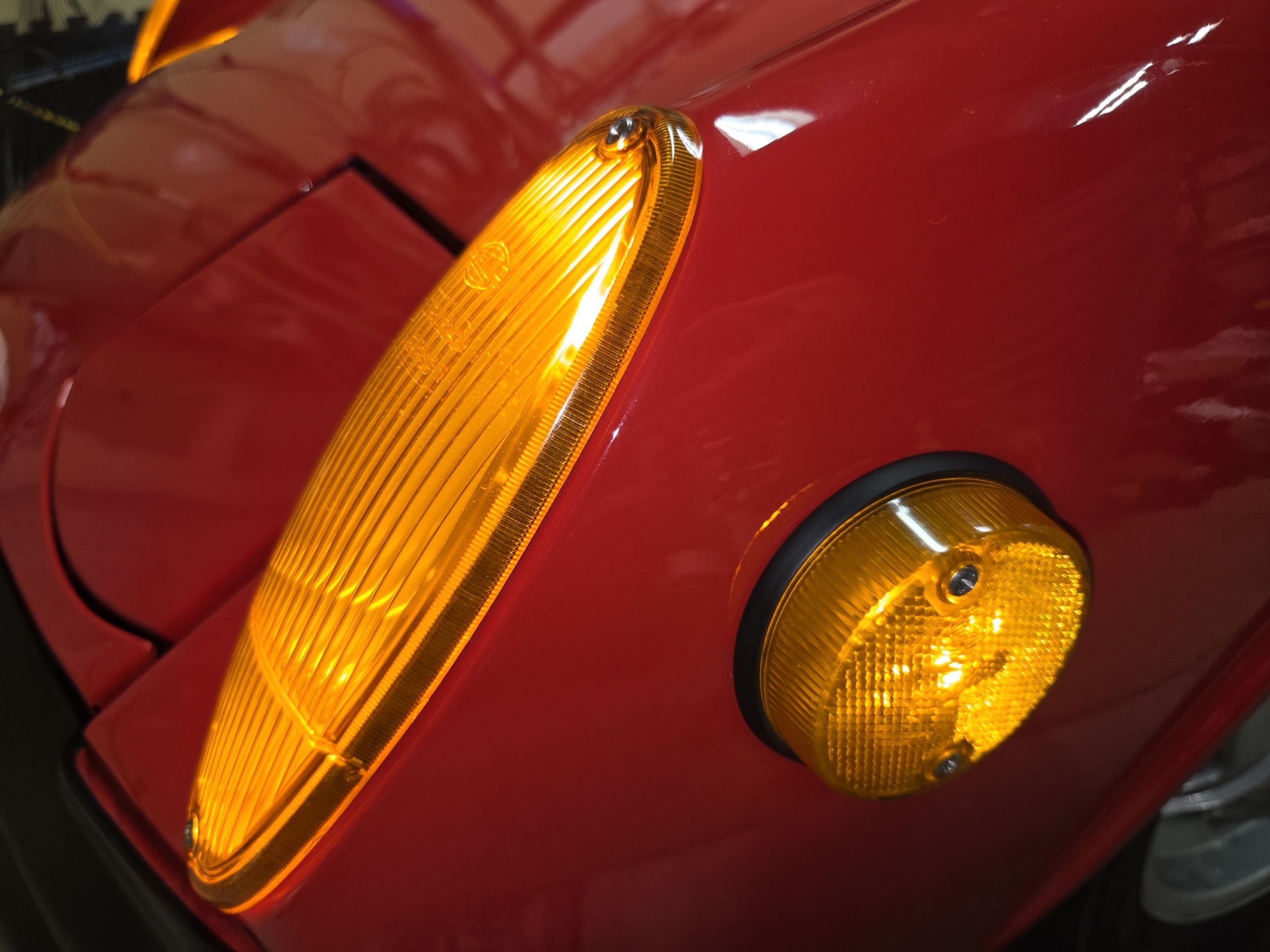

Lights-on, Side-Marker with turn signal-OFF:

SideMarker-On-No-TurnSignal

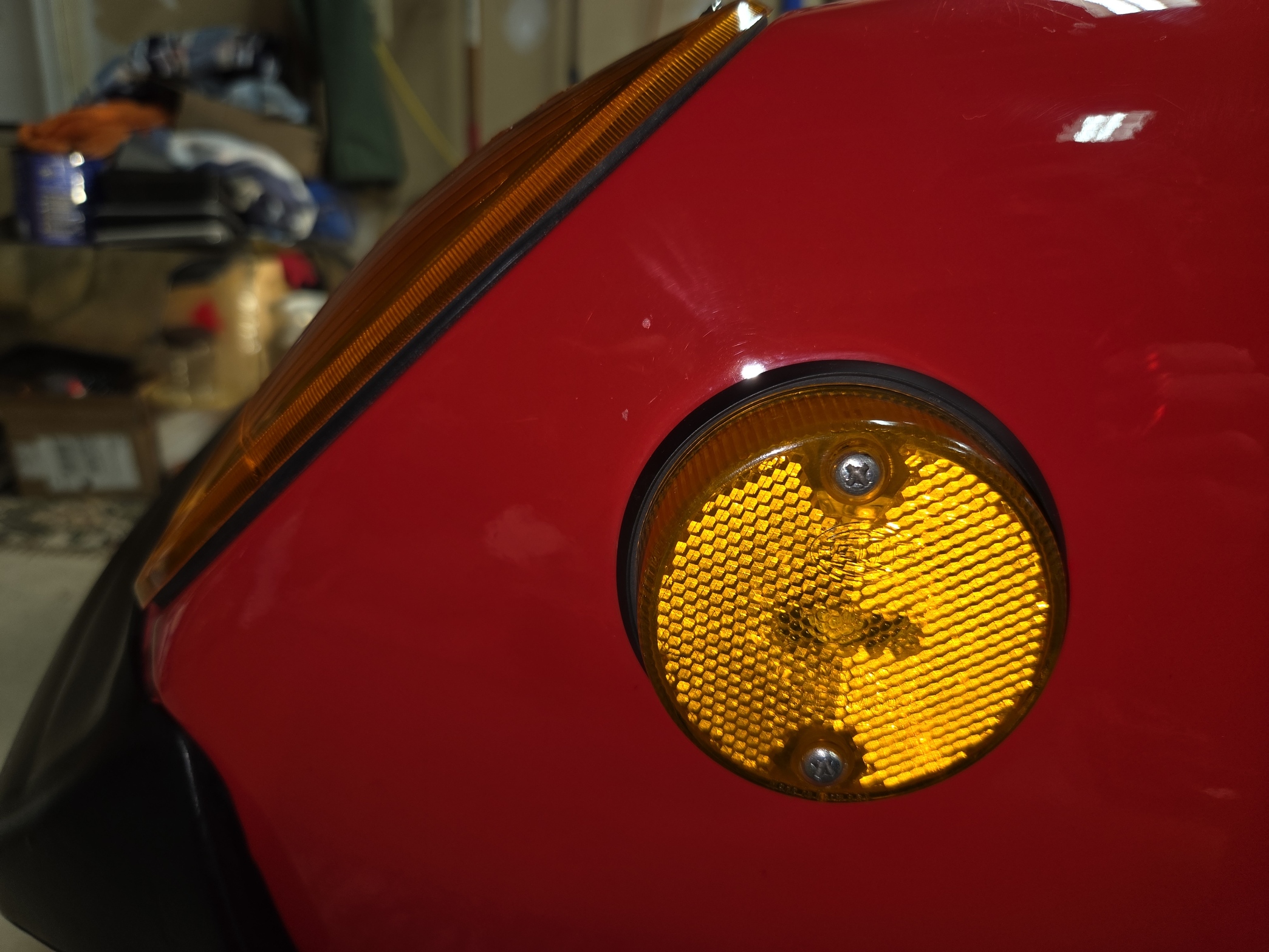

Side Marker Light Off:

SideMarker-Off

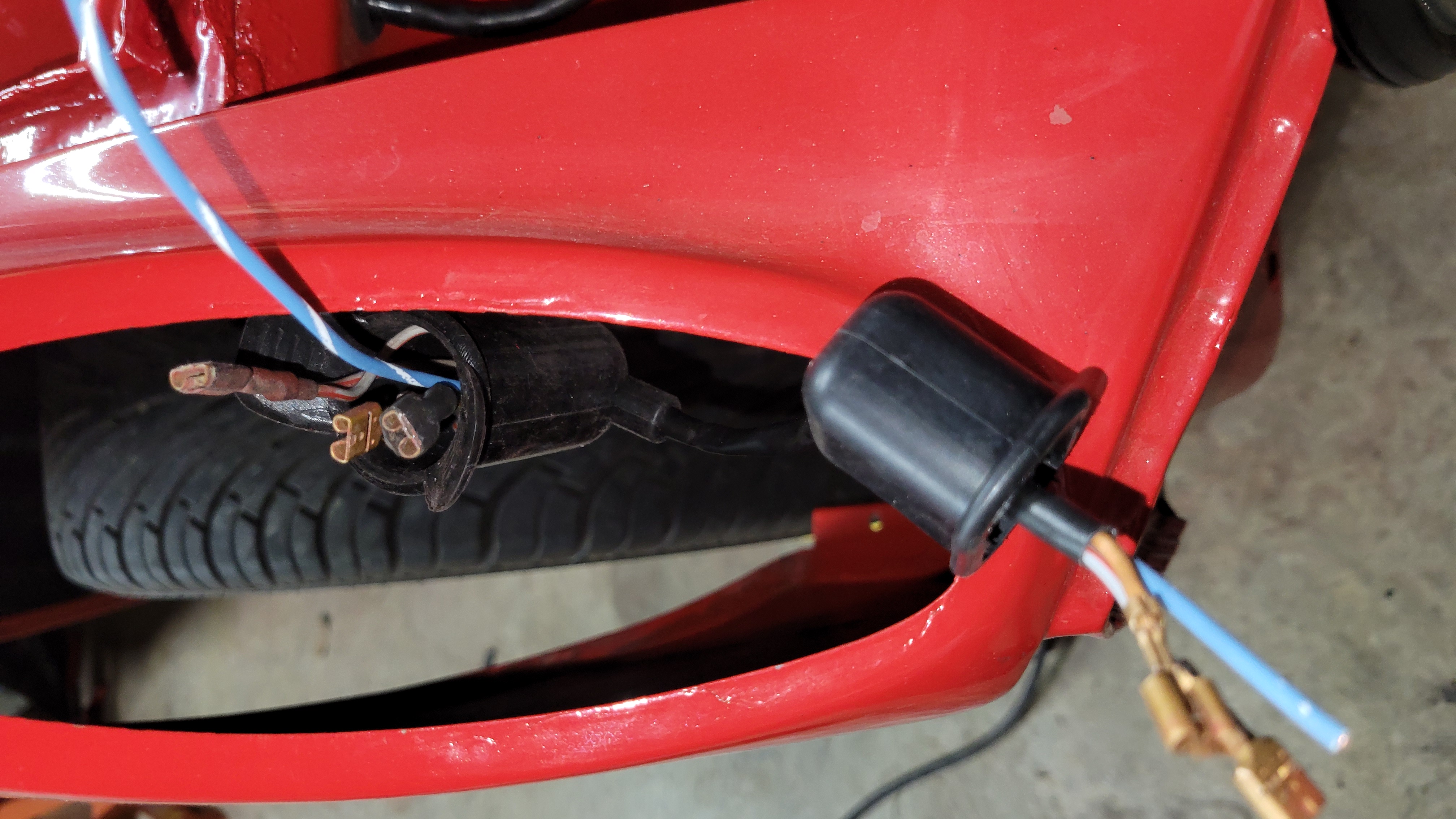

Notice the blue wire.  That loops into the harness and back to the front signal light:

20230809_163522

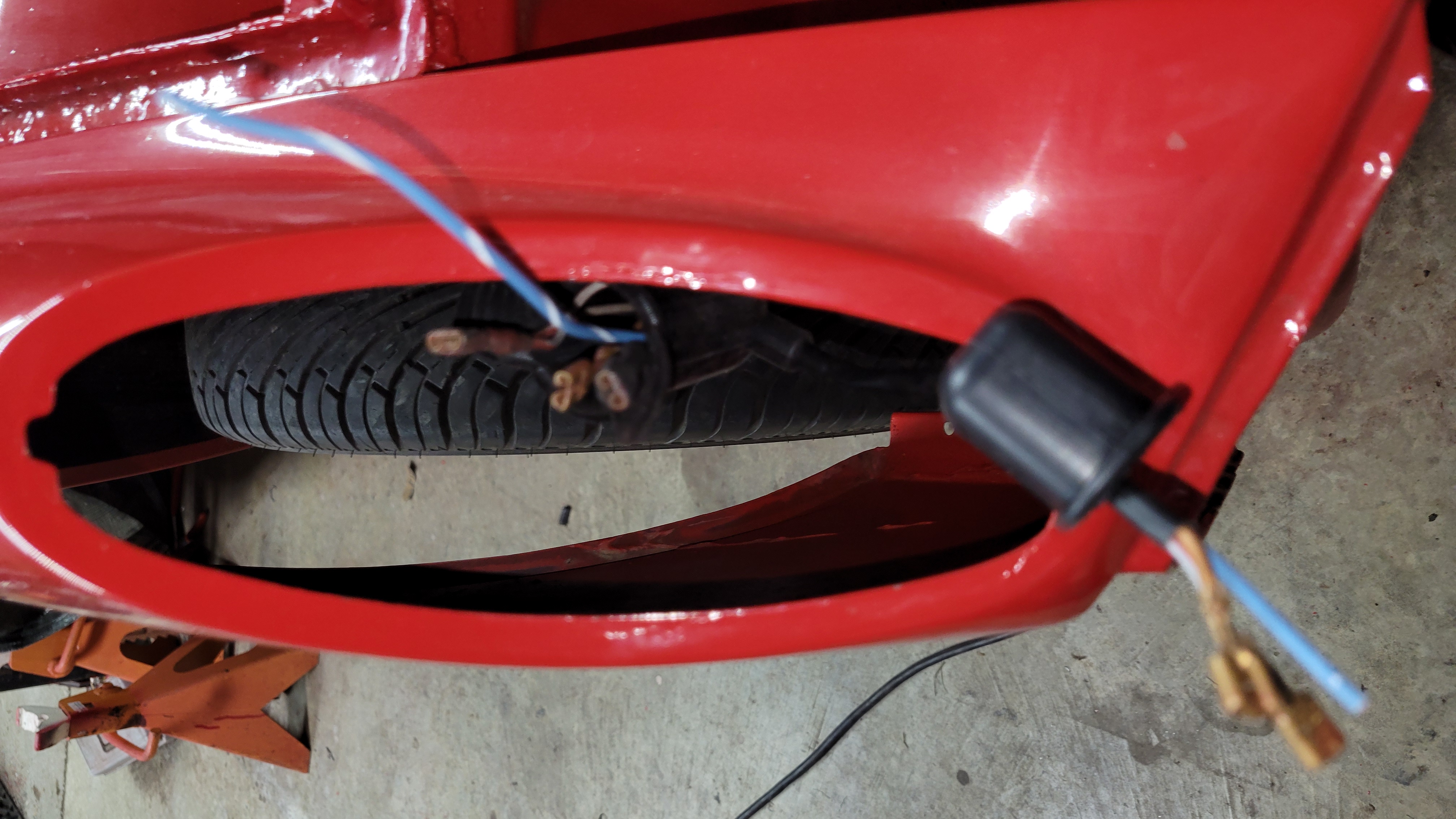

Another view of the wire in blue.

20230809_163540

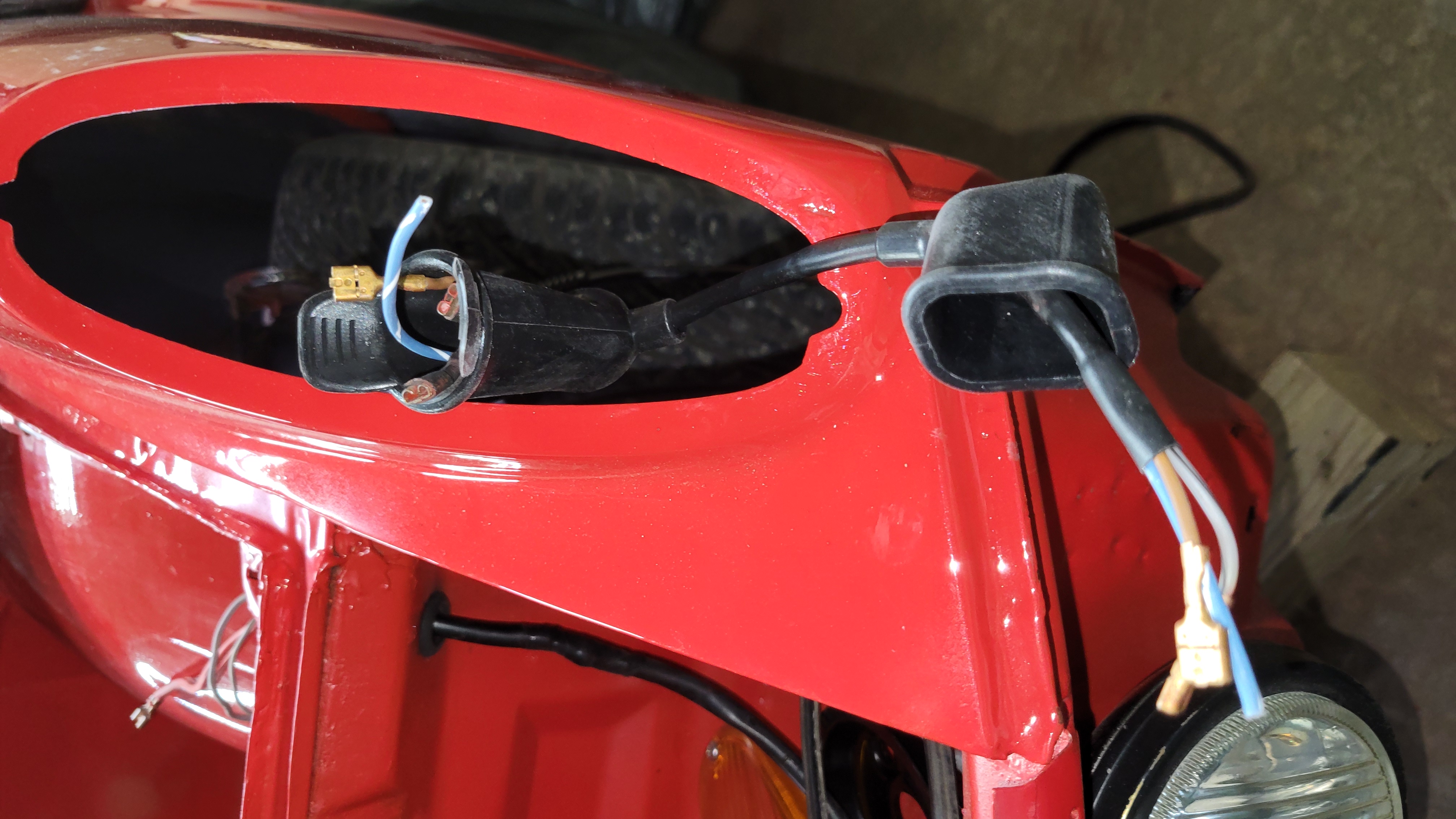

The driver's side"

20230809_163656

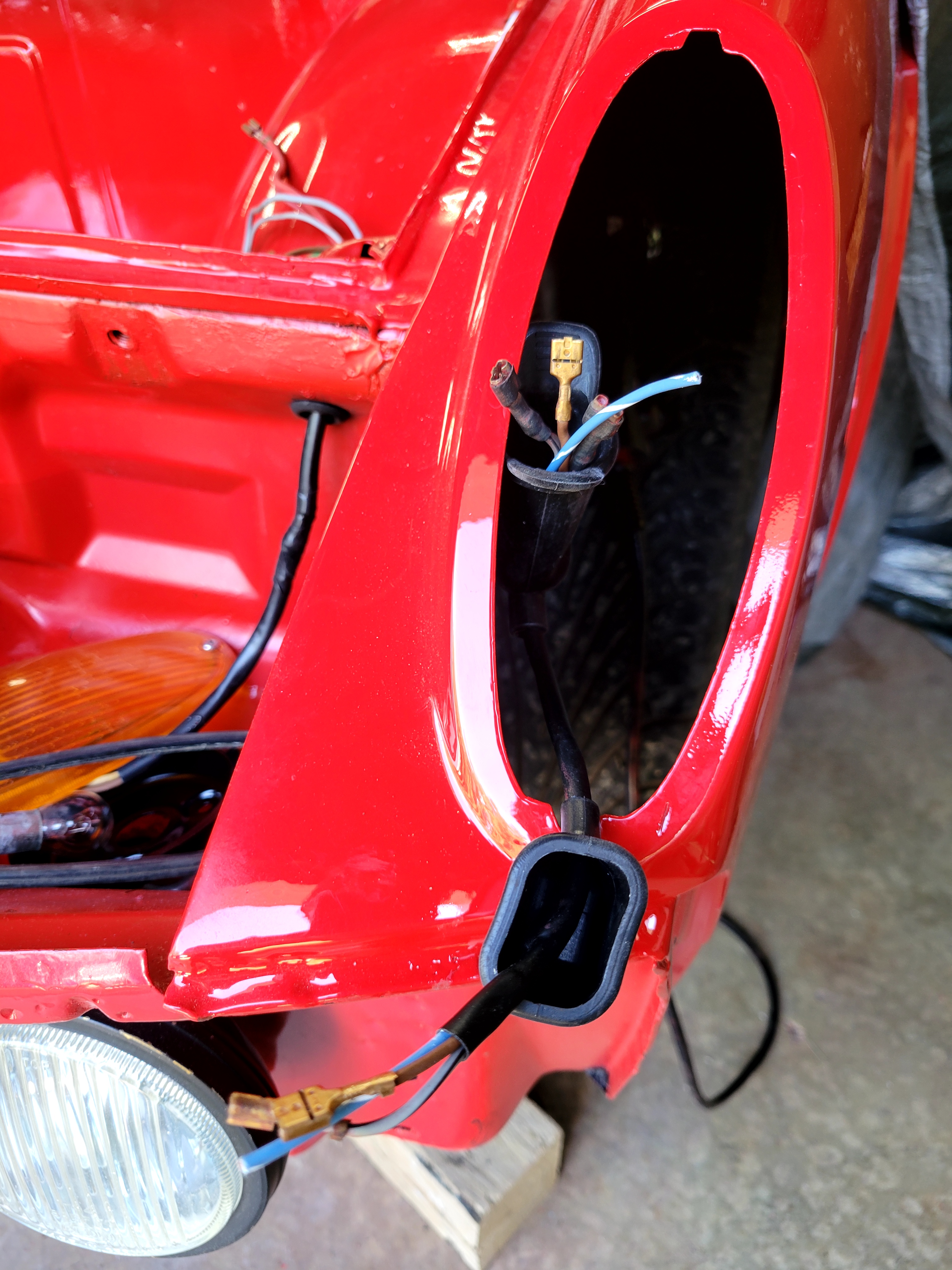

Another view of the driver's side:

20230809_163731_01

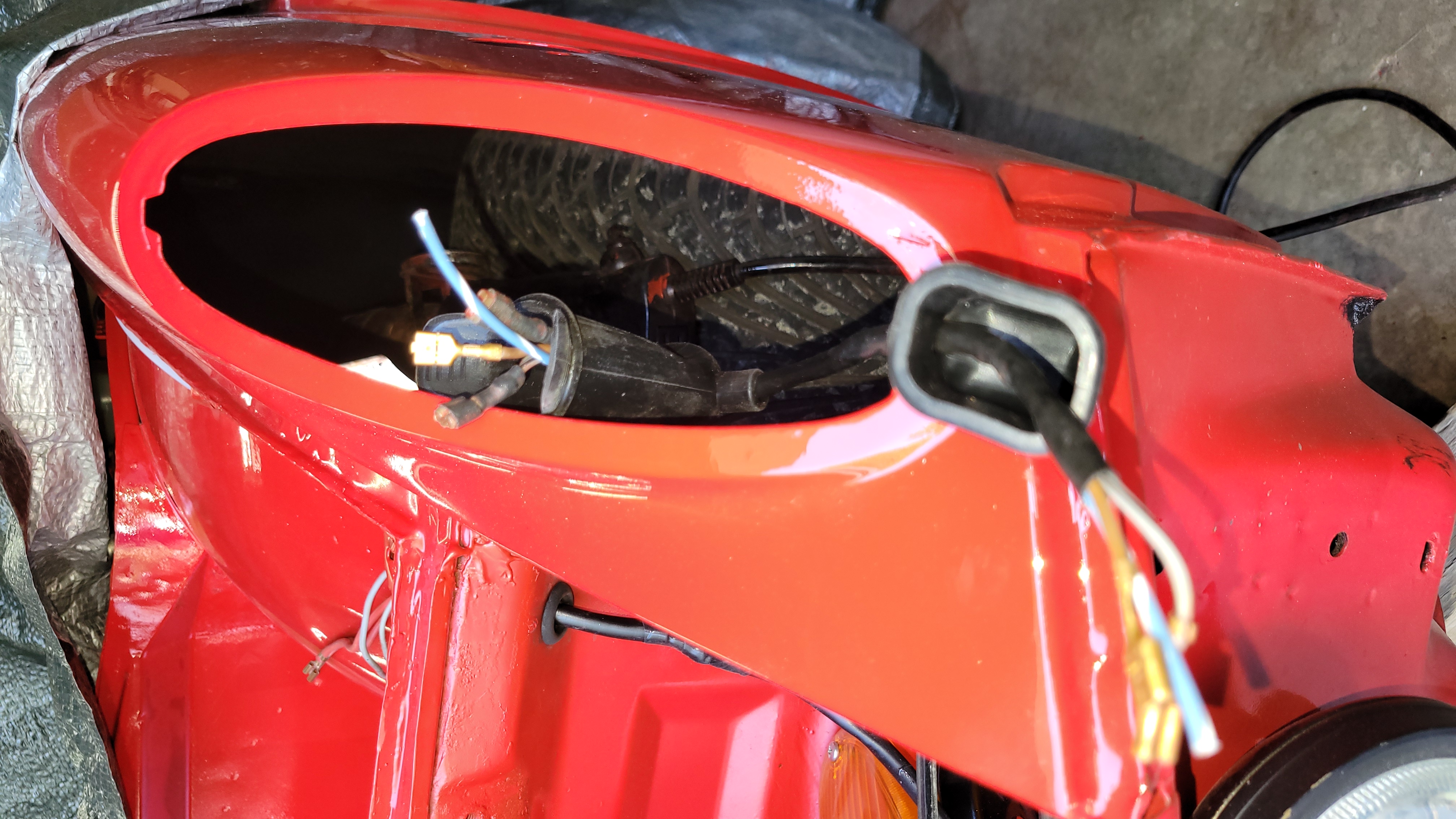

Another view:

20230809_163748

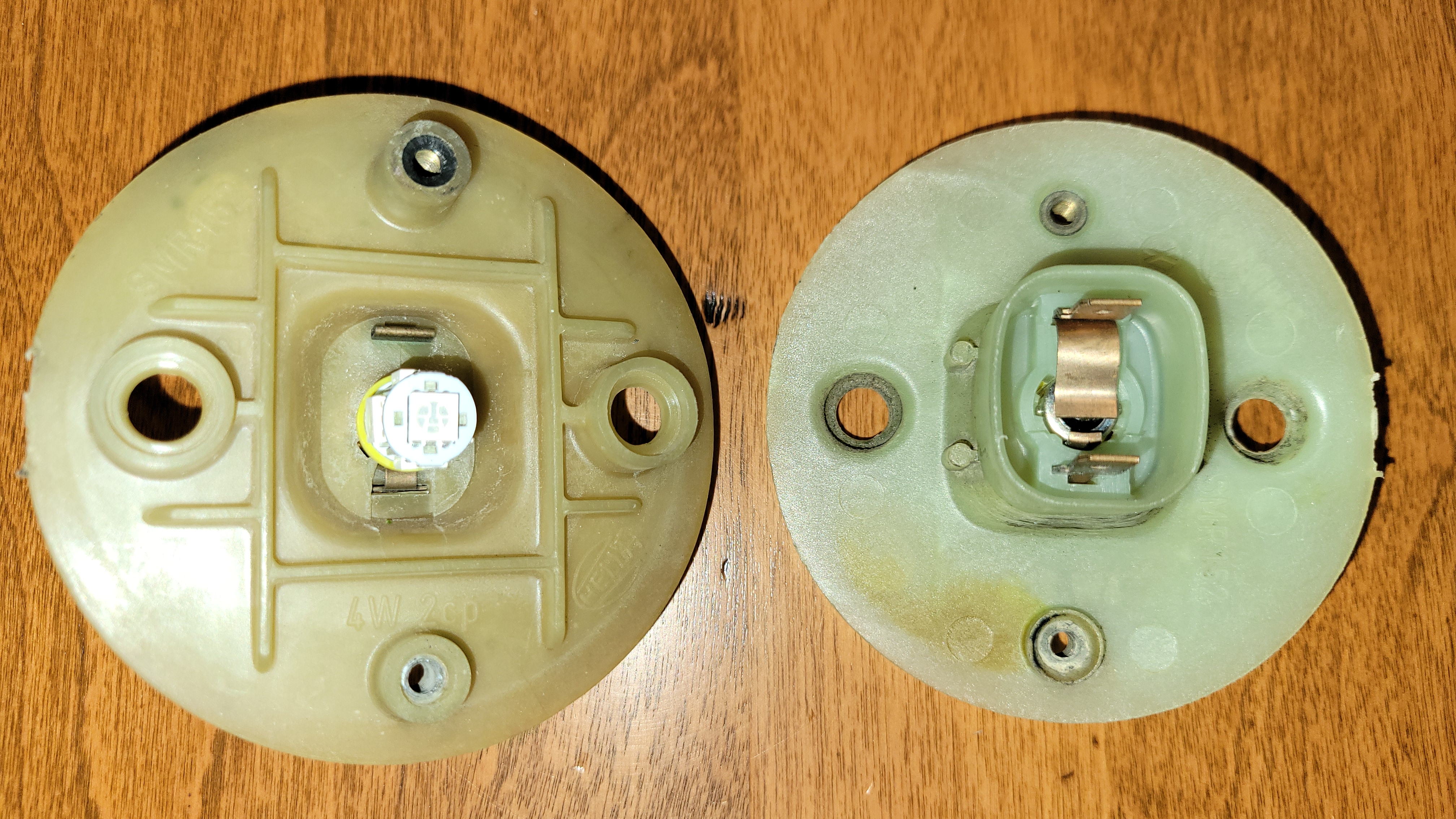

The marker with an LED (YELLOW) bulb:

20230810_163221

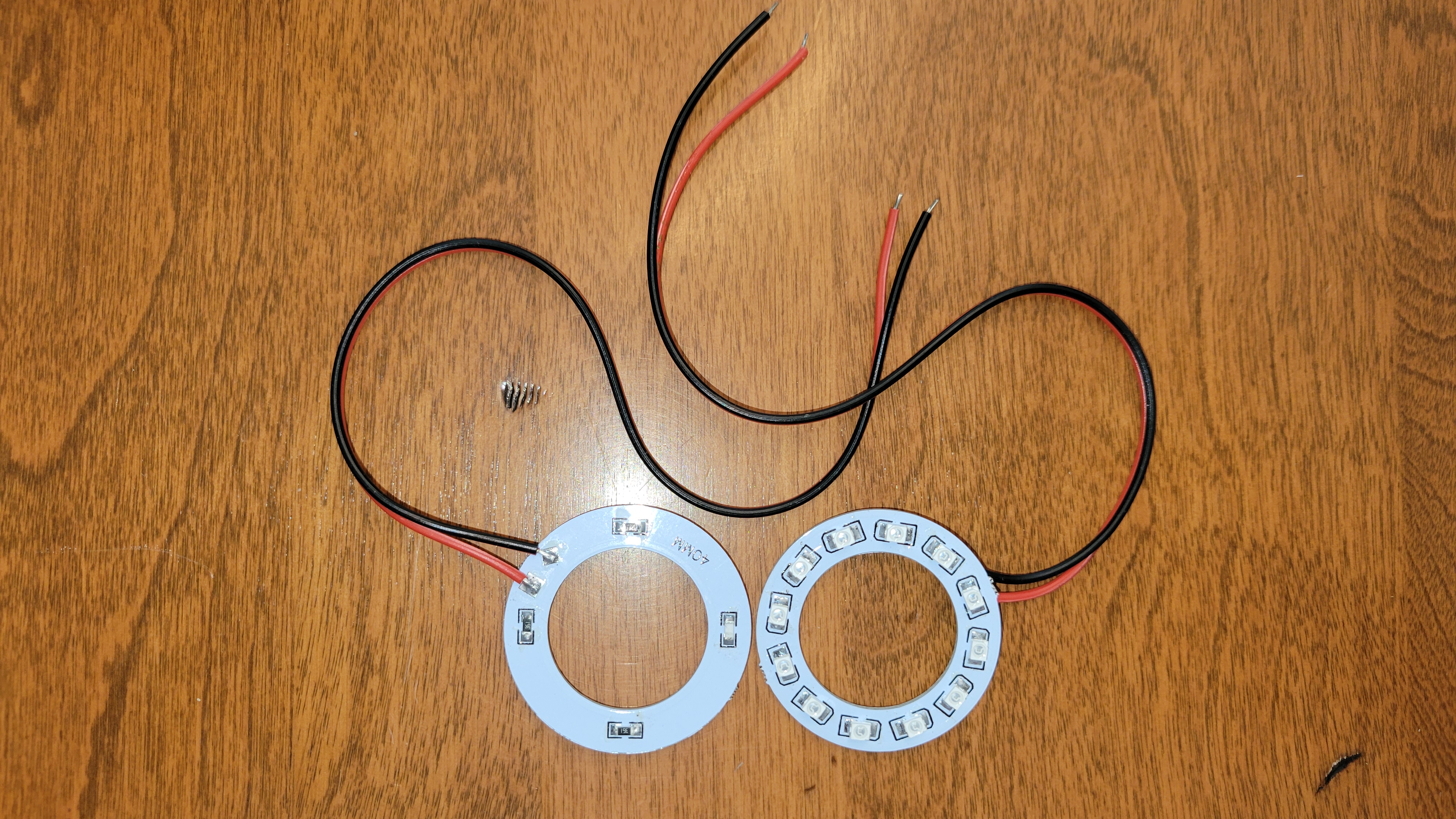

Here is the LED light before modifications:

20230810_163317

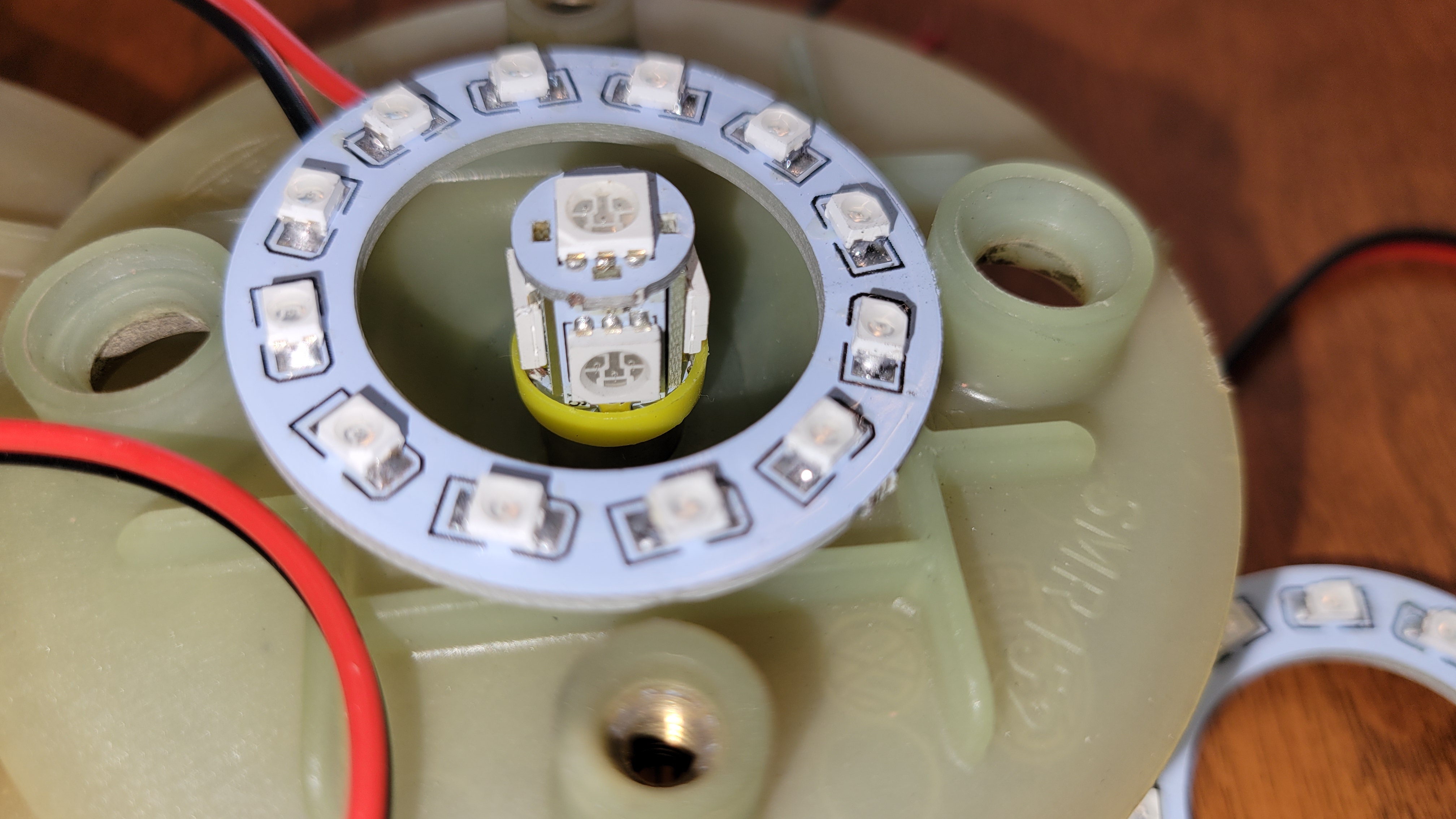

Minor clearancing of the LED board with a round file to clear the standoffs:

20230810_163429

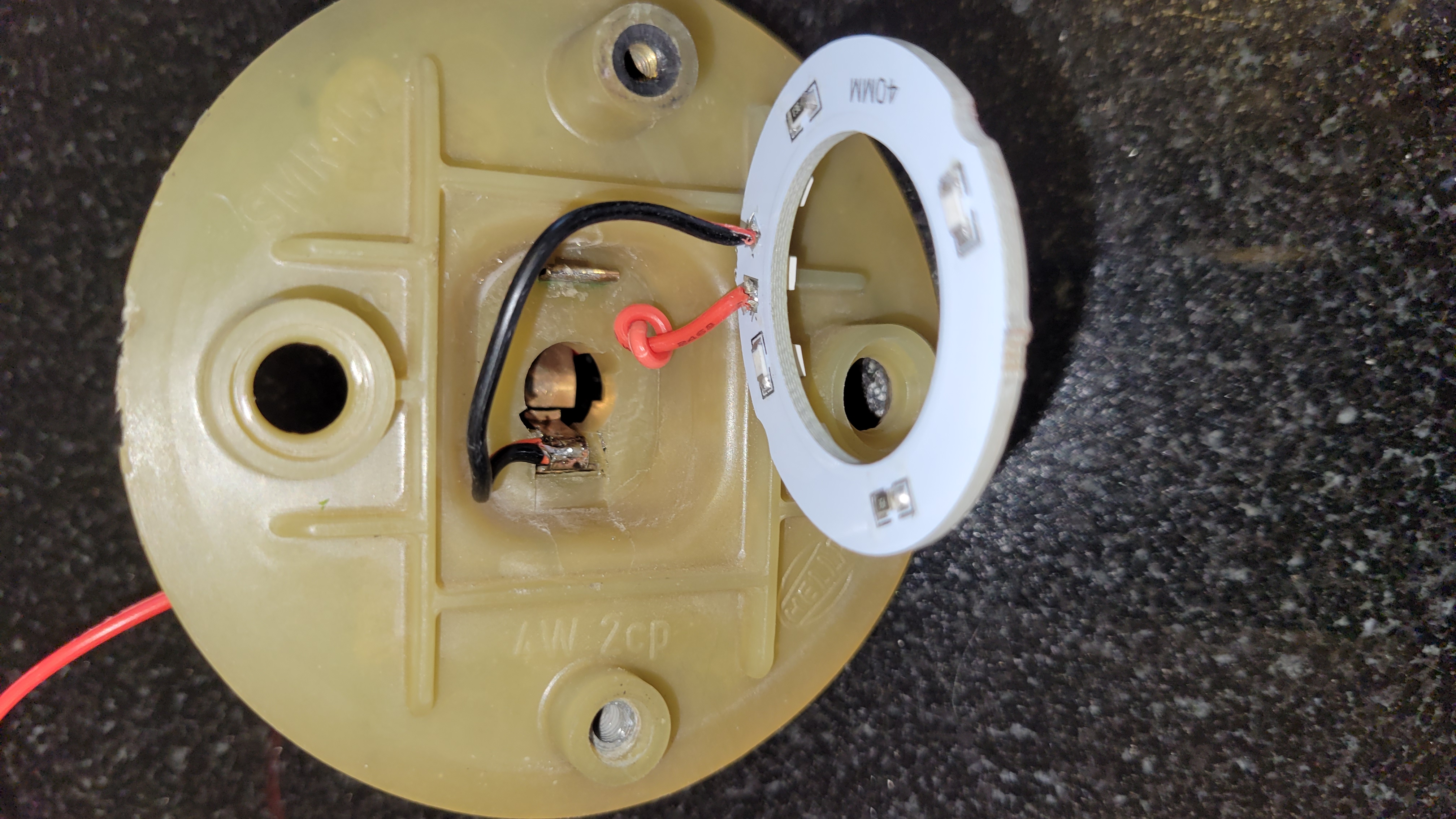

The other side with the connecting blinker negative soldered to the negative terminal.  Note the small hole that was drilled for the red wire to go to the blue wire:

20230810_190210

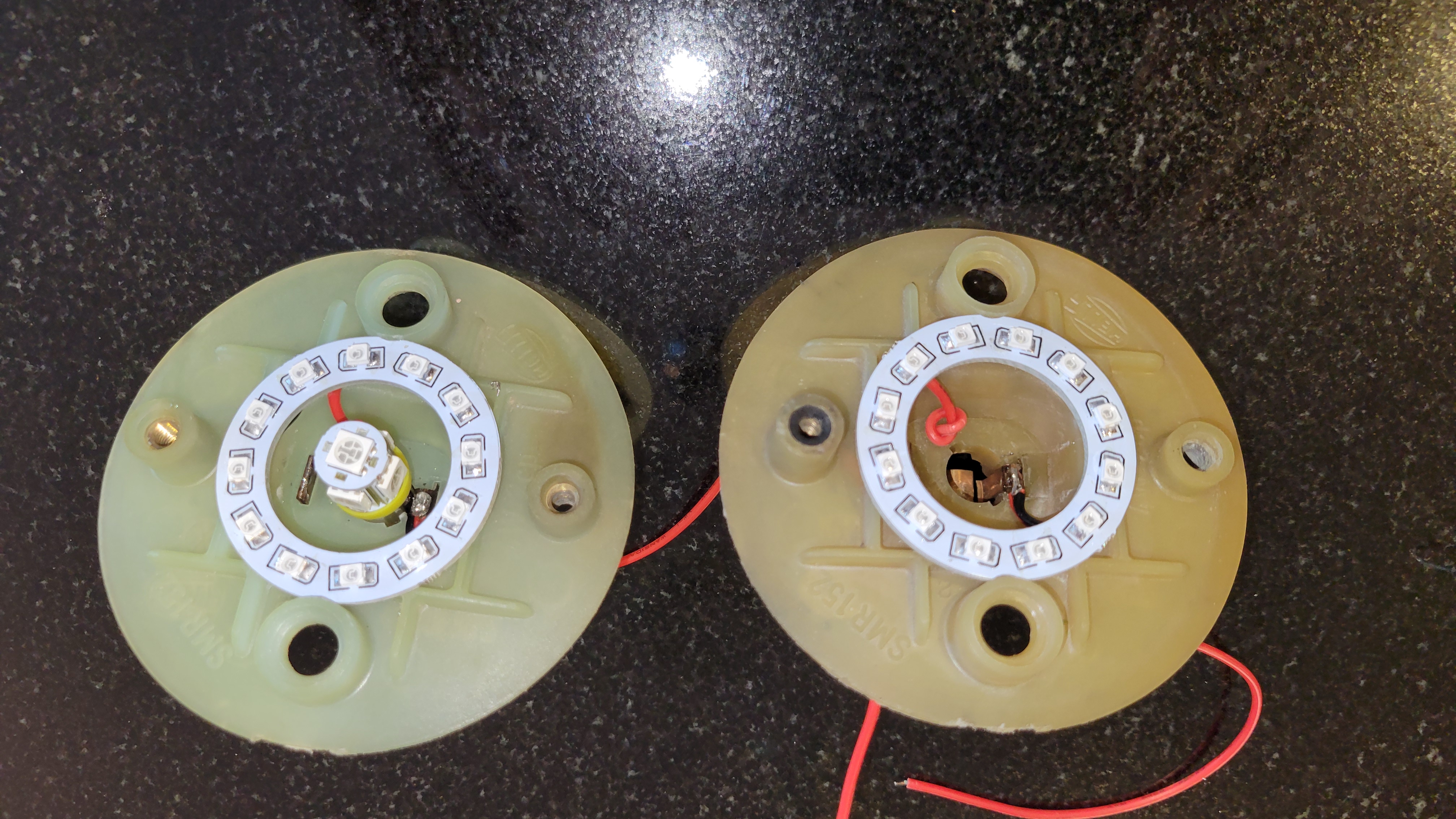

Here you see the two clearanced items from the round file.  These get glued-in with a dab of clear silicone at the contact points.  A small knot in the red wire as a stress stop:

20230810_190258

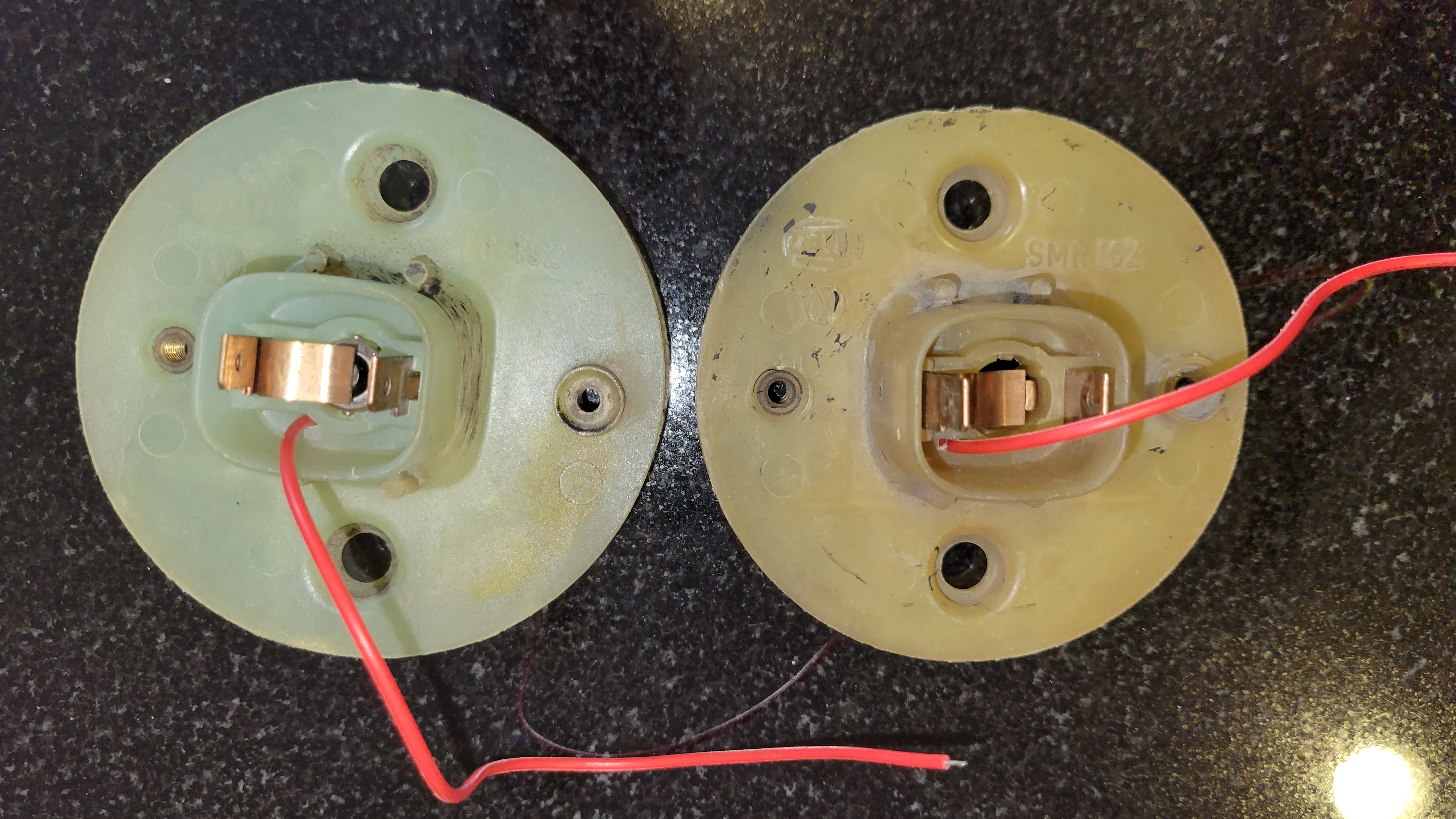

Red wire passing through the hole:

20230810_190321
