NOTE:  To remove the tar panels that are in the floor-pan, just get an oscillating tool and a spade blade for that.  Always cut AWAY from your hands as you work with leather gloves.  That tool will take the stuff off very fast.

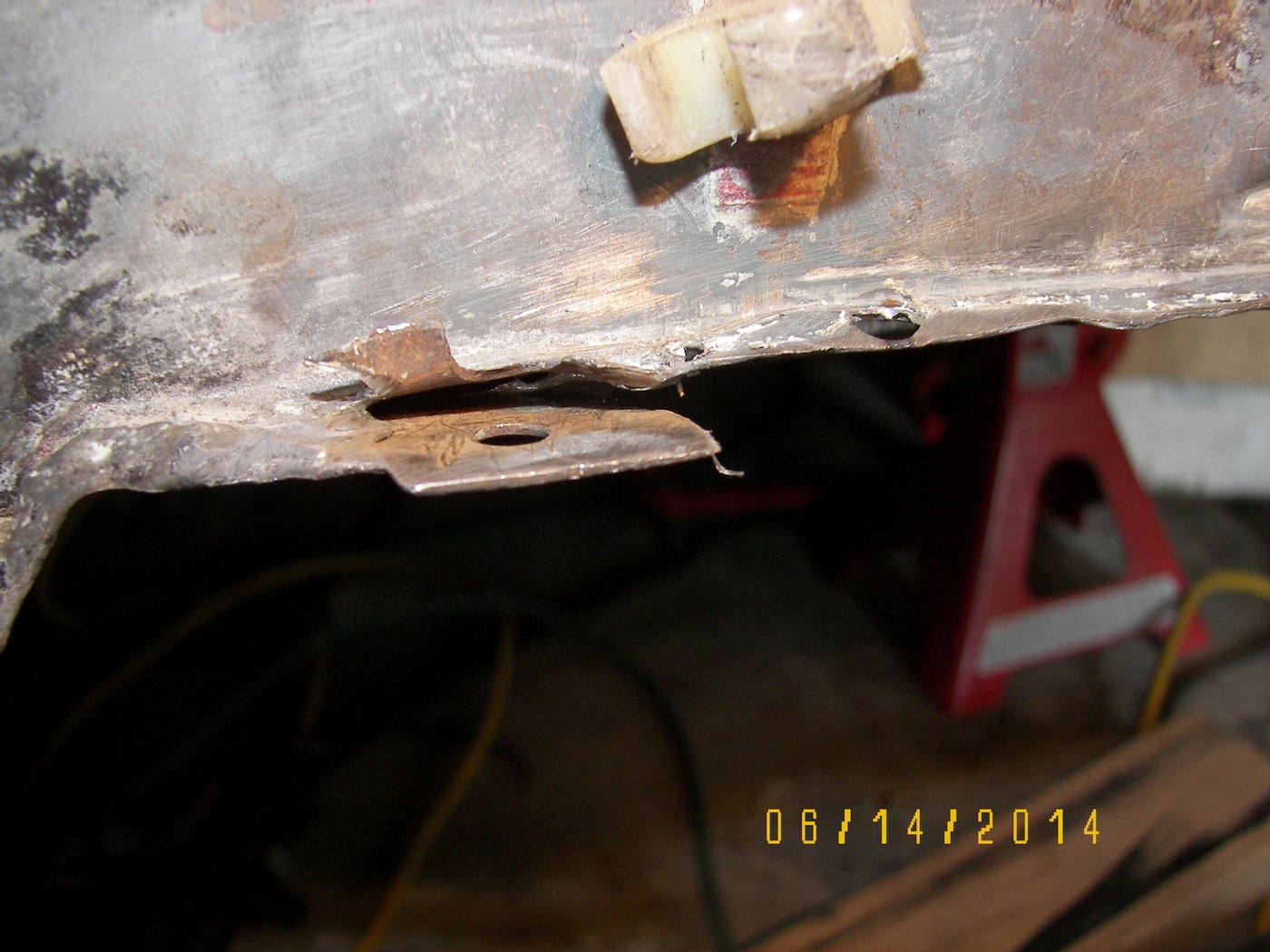

It was not simple.  The donut / jack point is under the outside edge of this.  The panel extends into the engine compartment and you must weld upside-sown unless you are using a rotisserie.  The Hell-Hole makes a hole into the passenger compartment (note that repair in the upper left of the image below):



Passenger Floorpan Section repair:

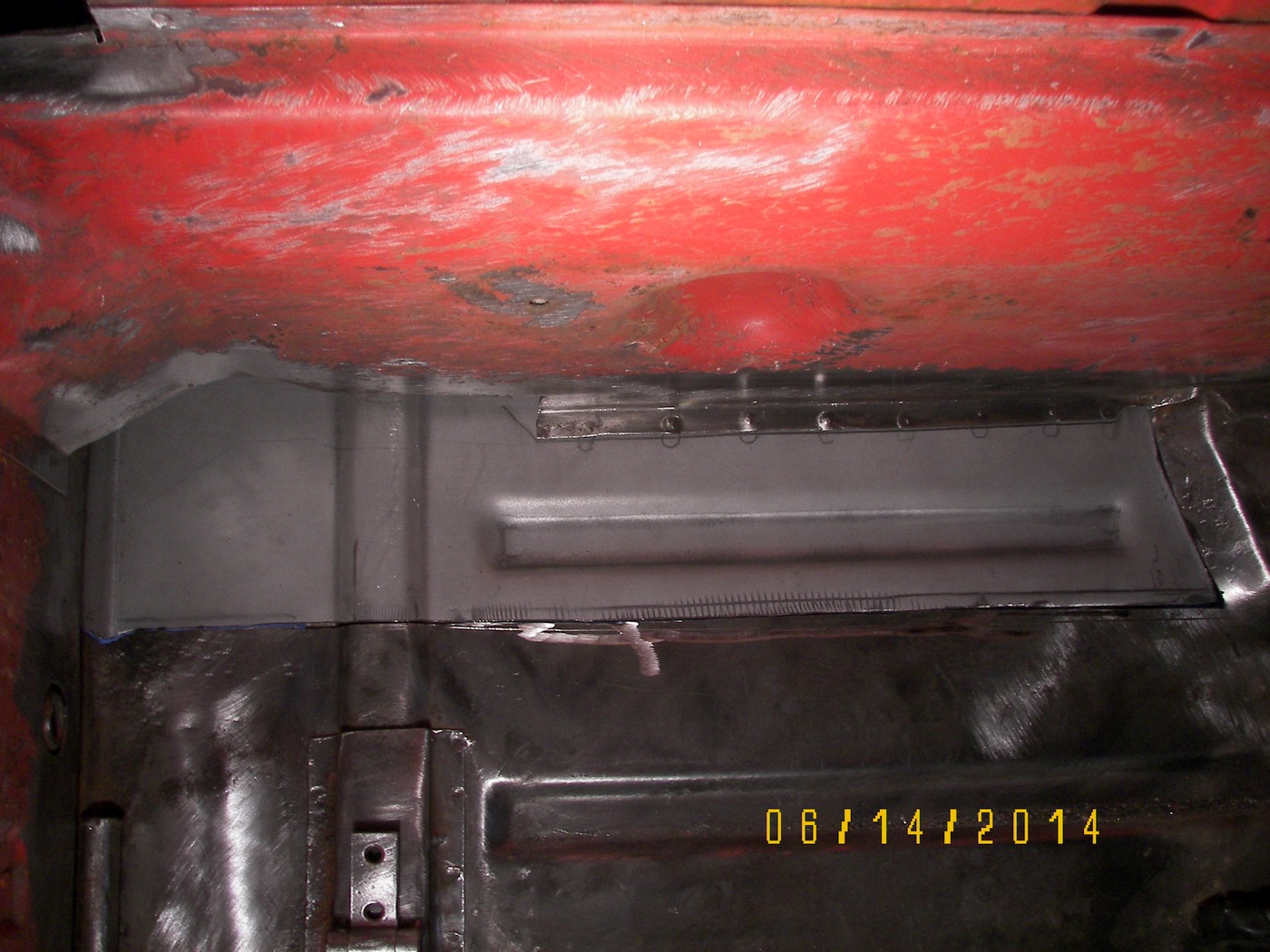

Setting up marks for welds form underside.

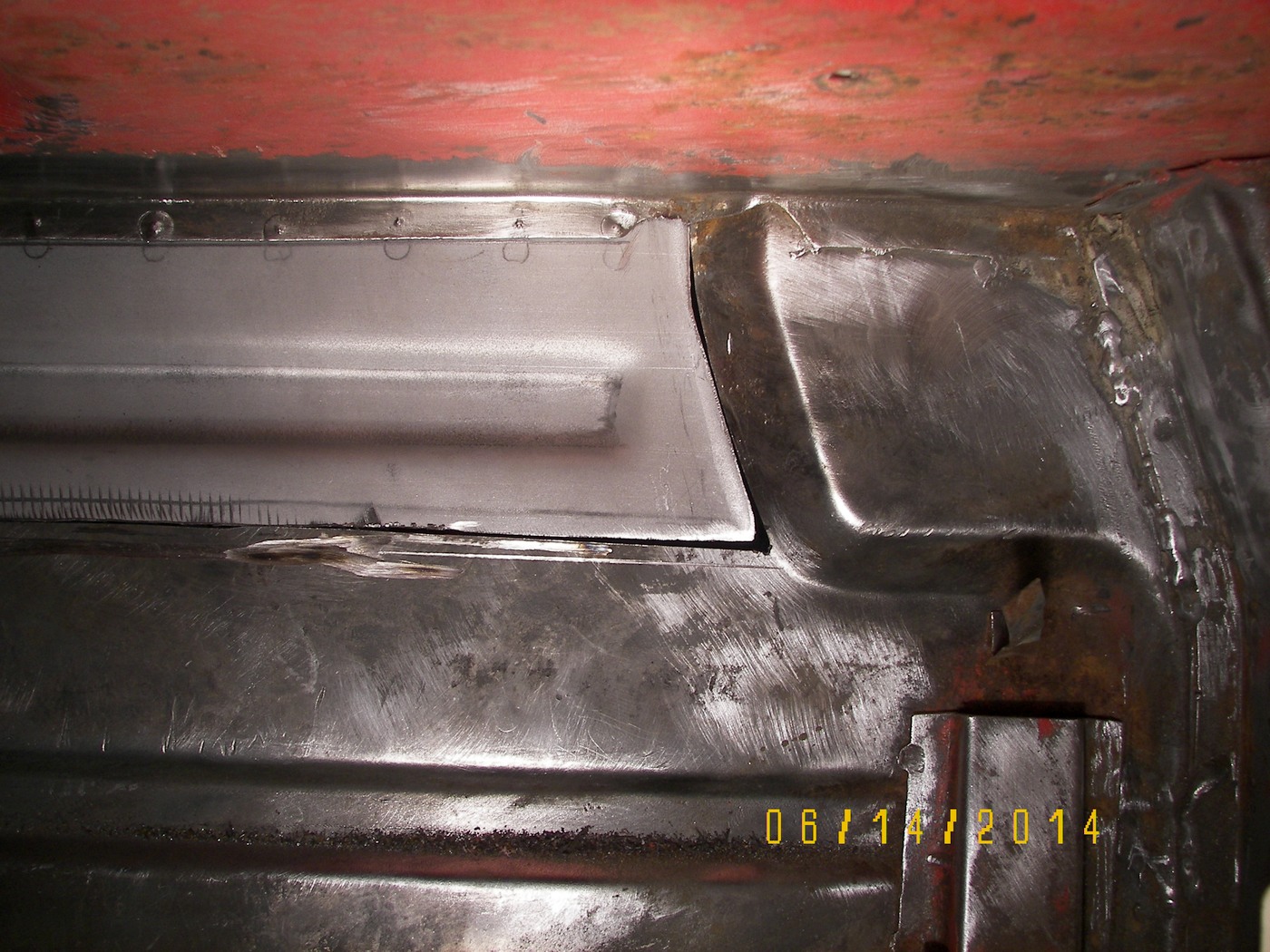

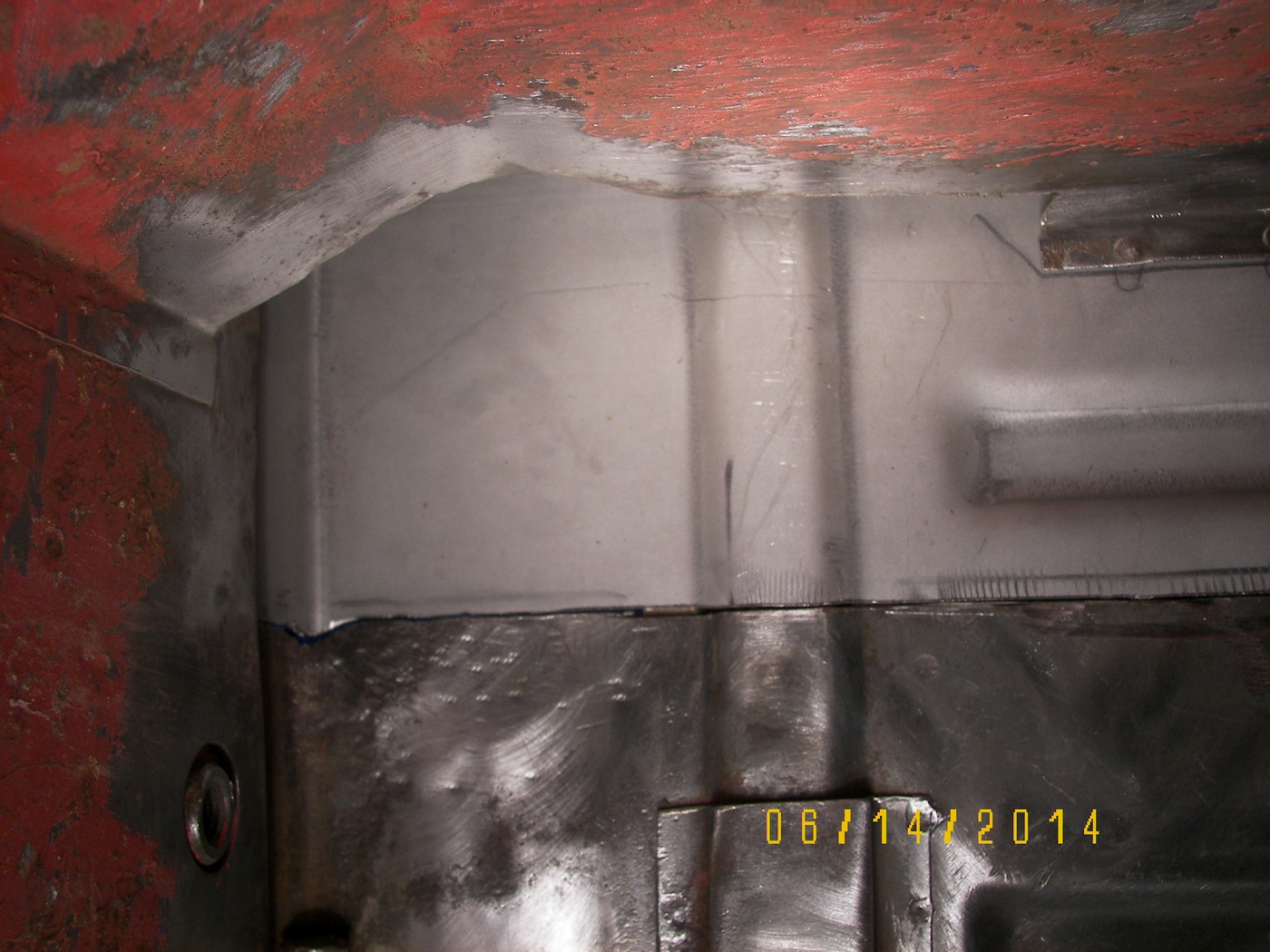

Left-Side with gap showing from firewall

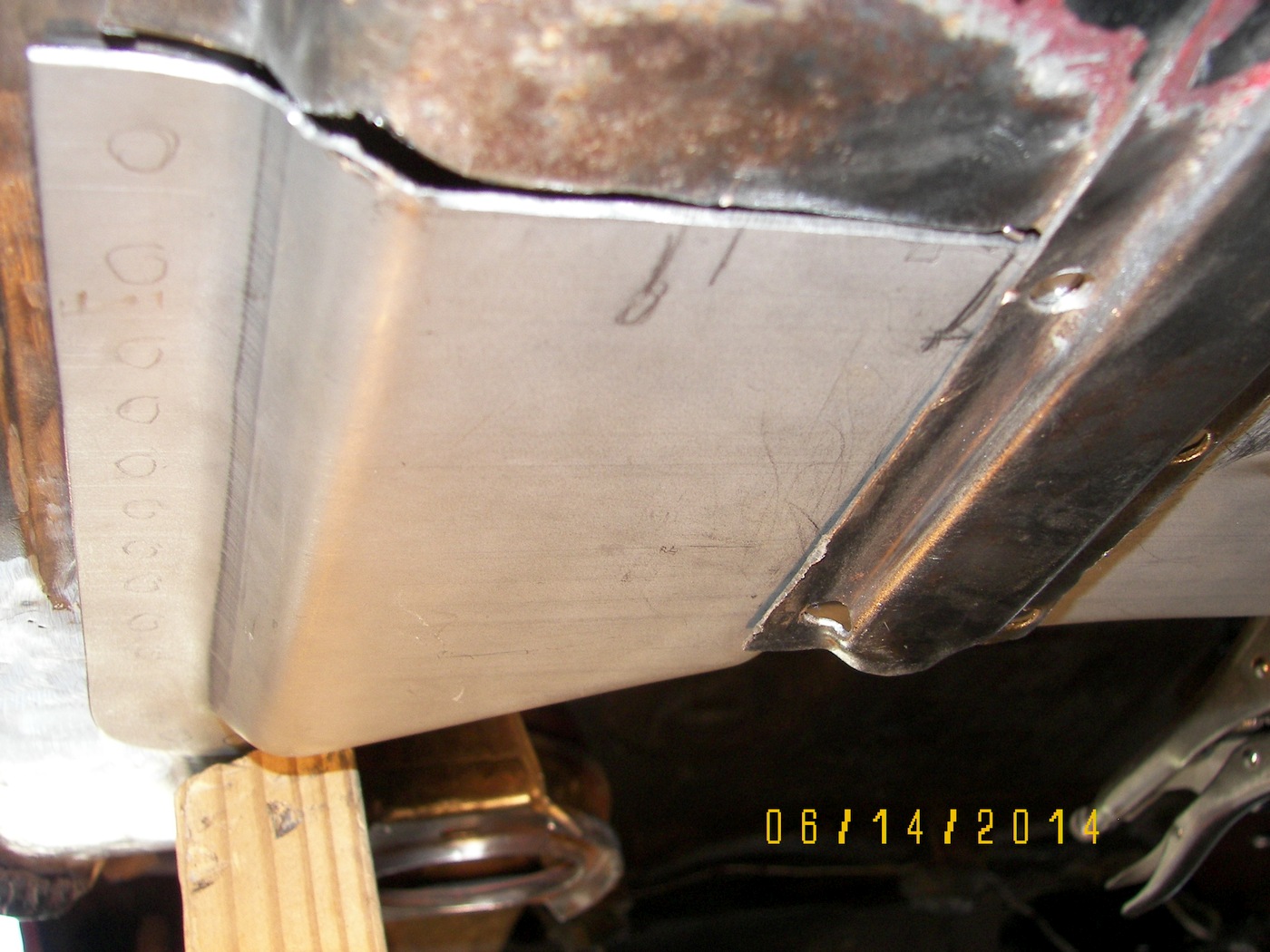

Underside fitment

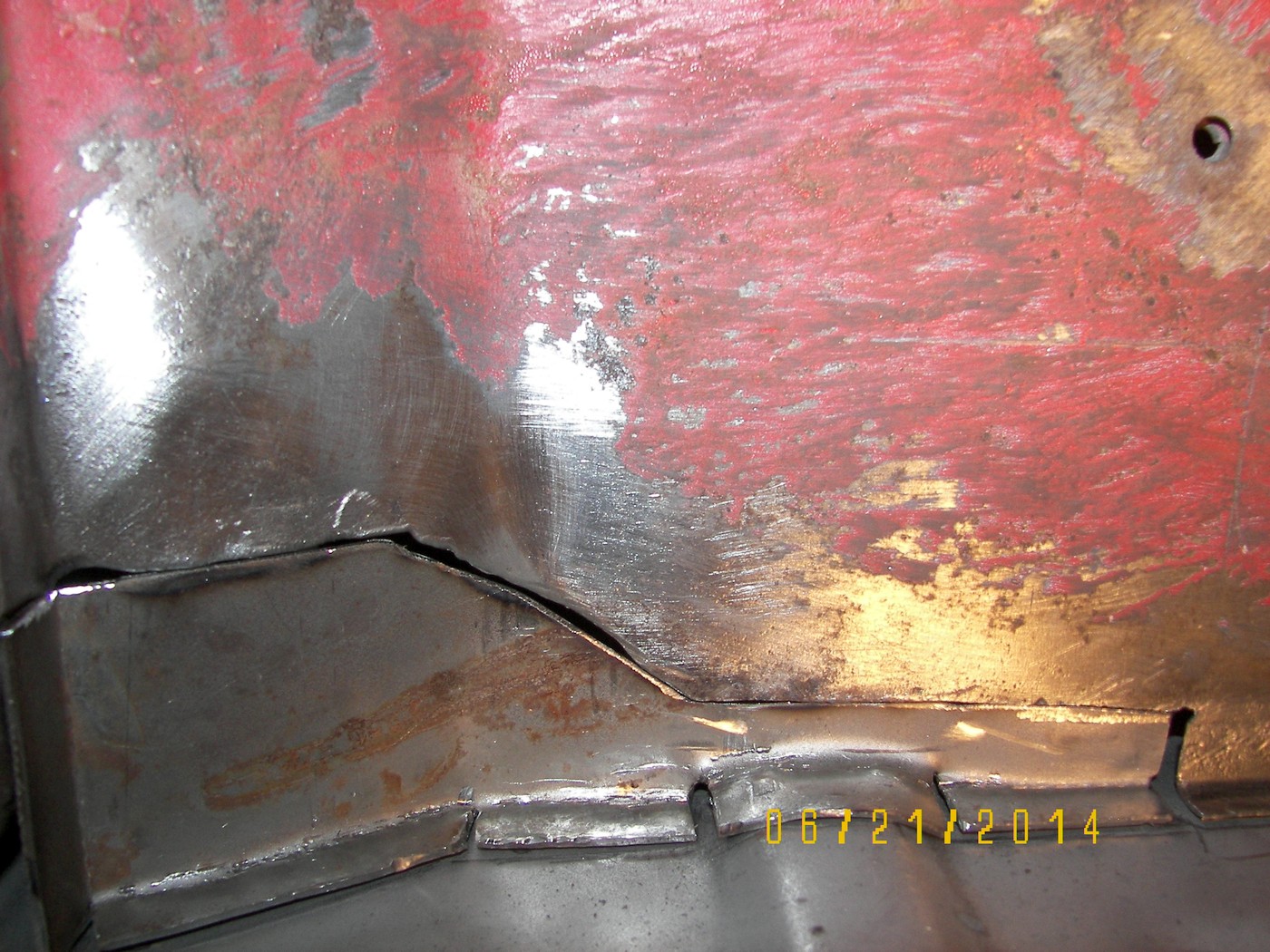

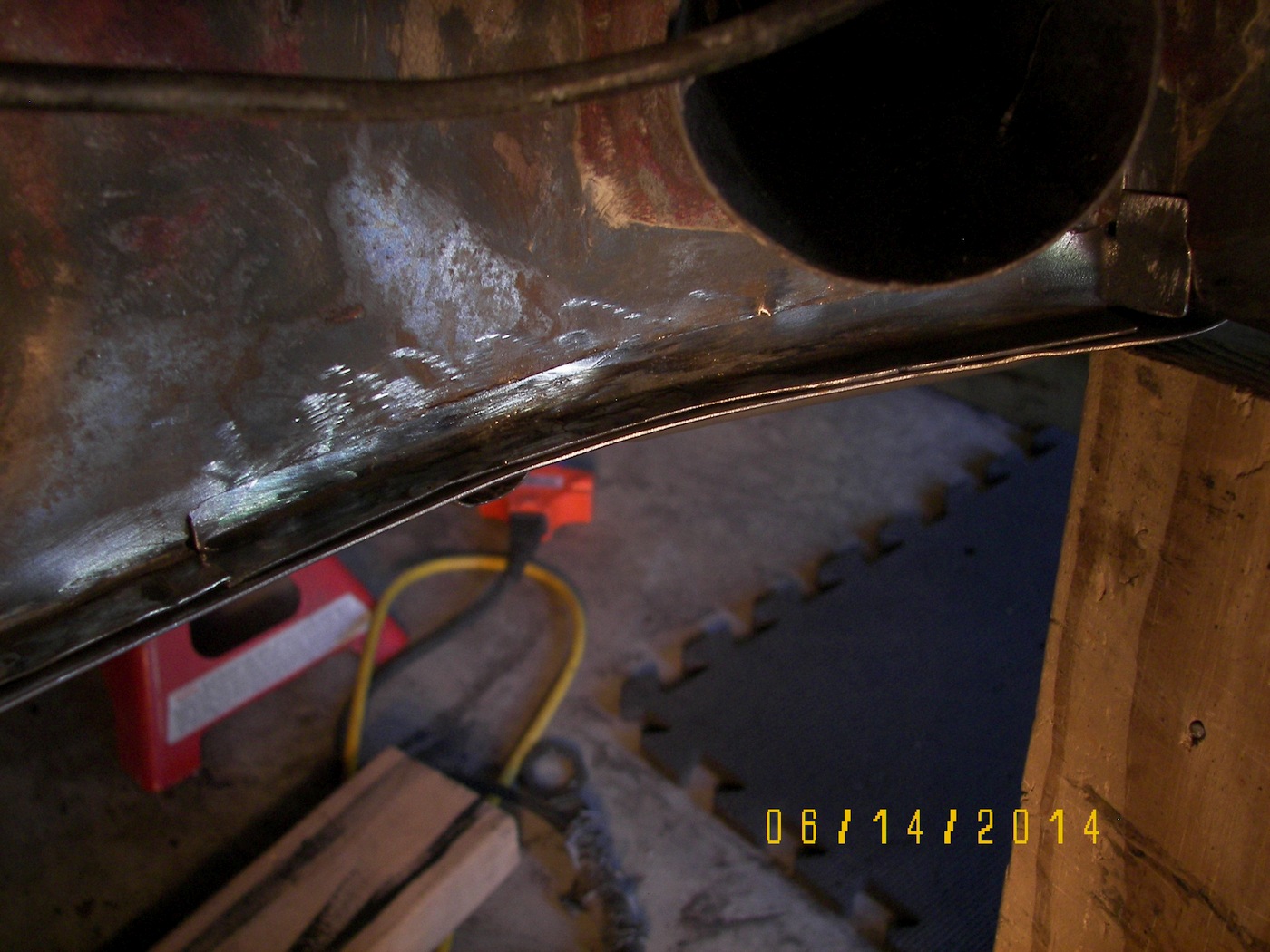

Back edge inside of engine-bay.  Note the patch used on the firewall bottom edge.



This is the right-side air-flap mount on the left that needed repair.  Was cleaned-welded and re-drilled.



Passenger firewall hole was cutout for clean metal

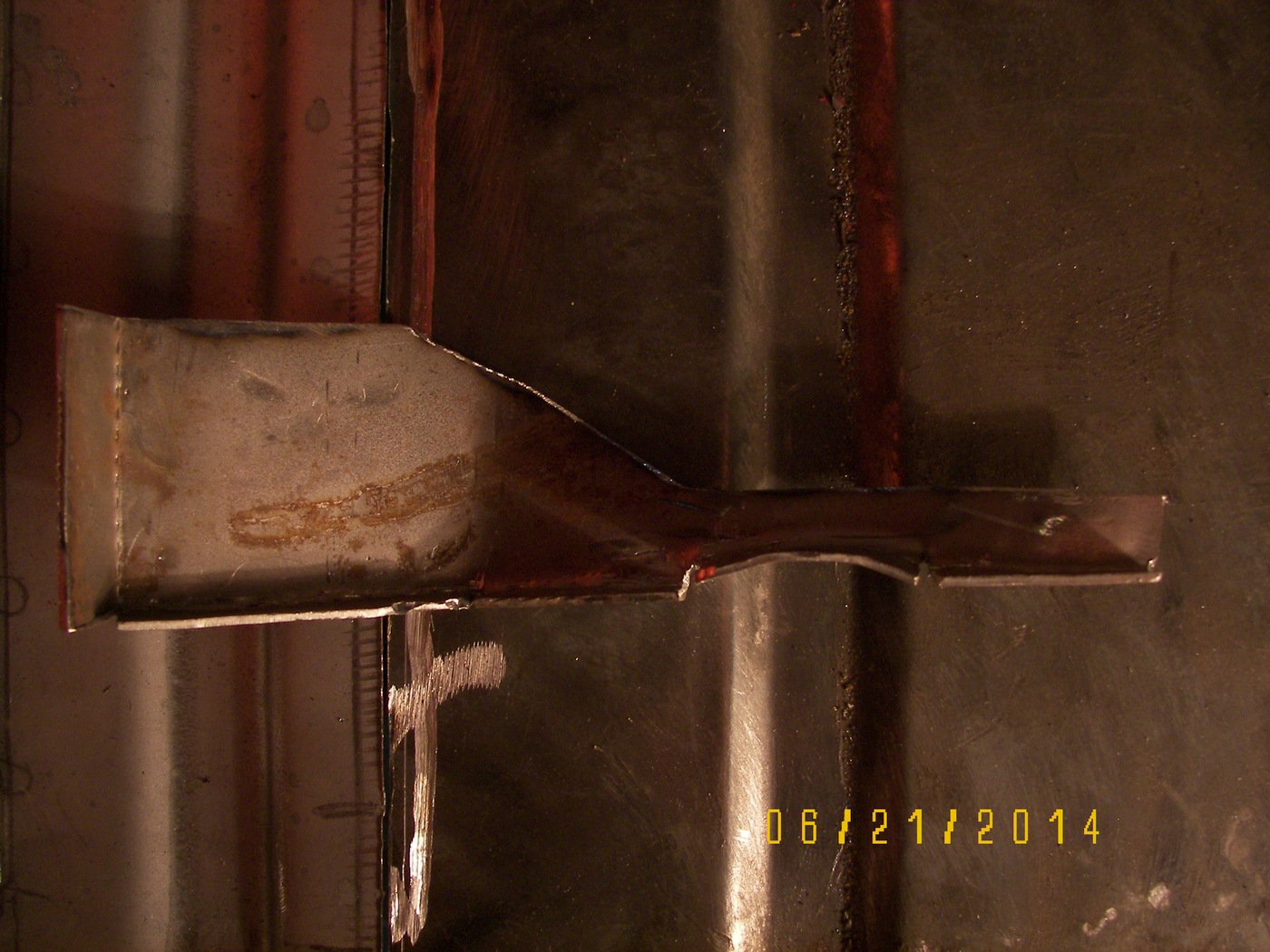

Fabricated a new firewall hole-filler

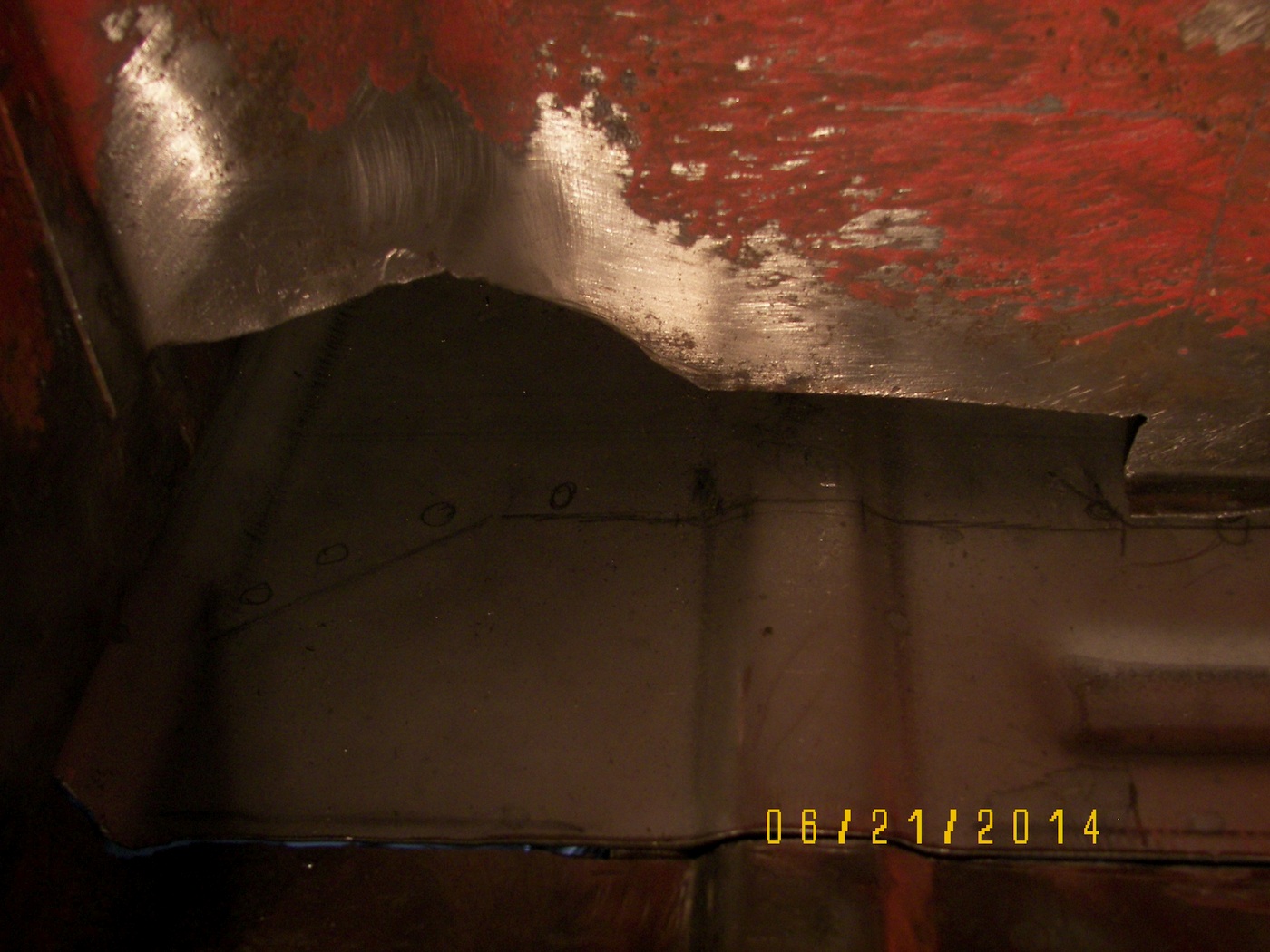

Pre-weld fitment looks OK

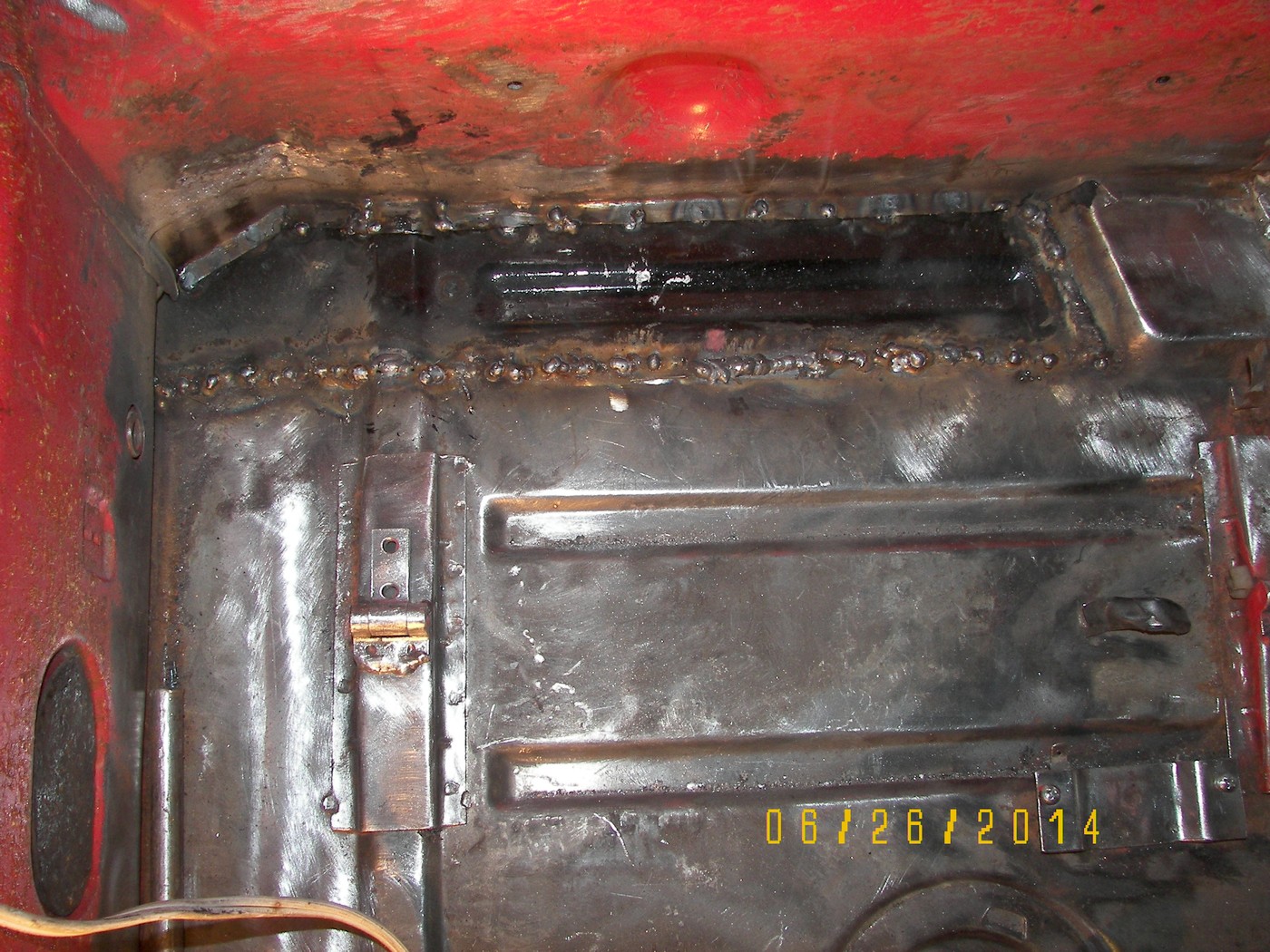

First pass on the welds...

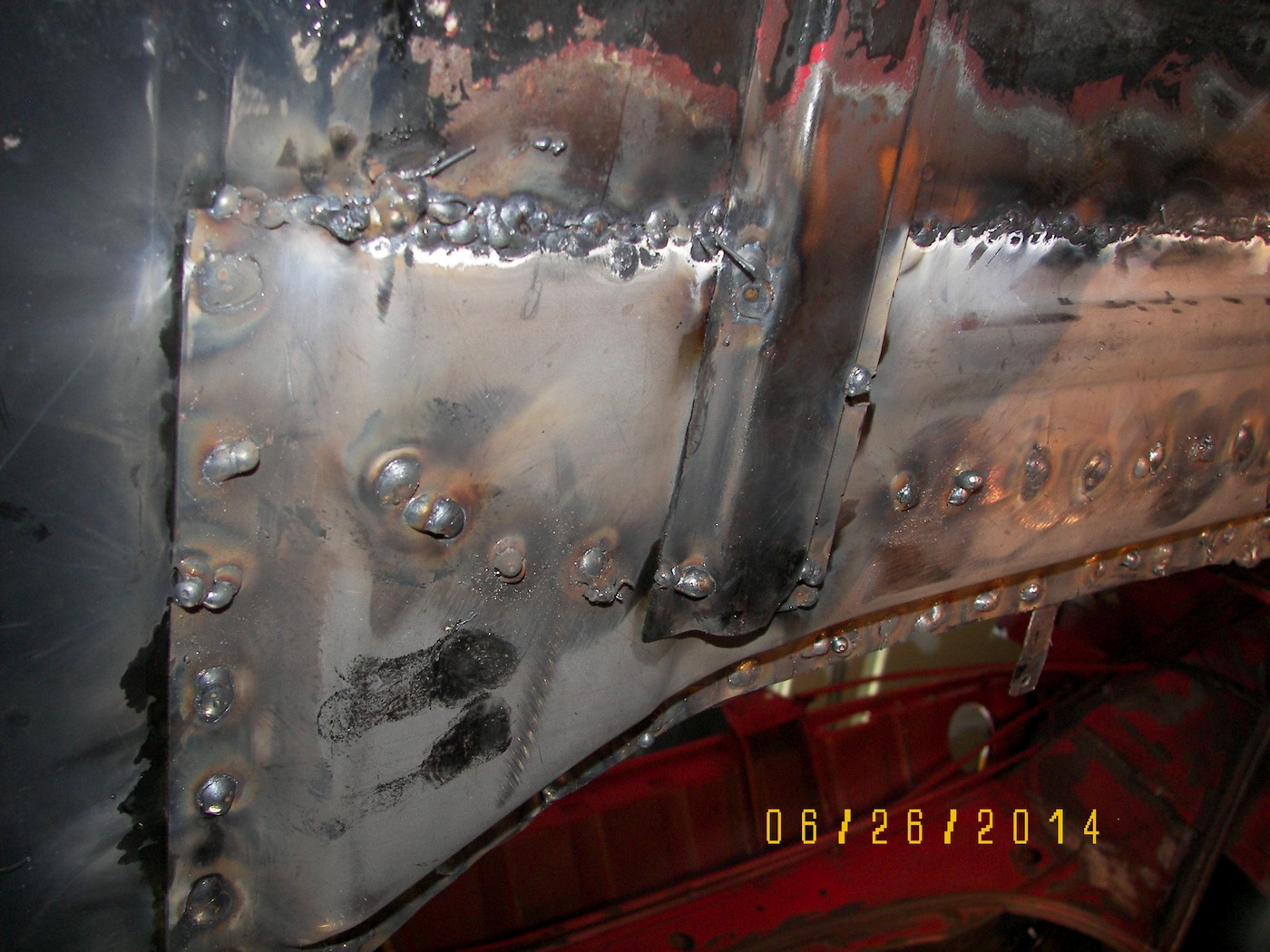

Initial pass on bottom (I hate welding upside-down, even with a leather sleeve).

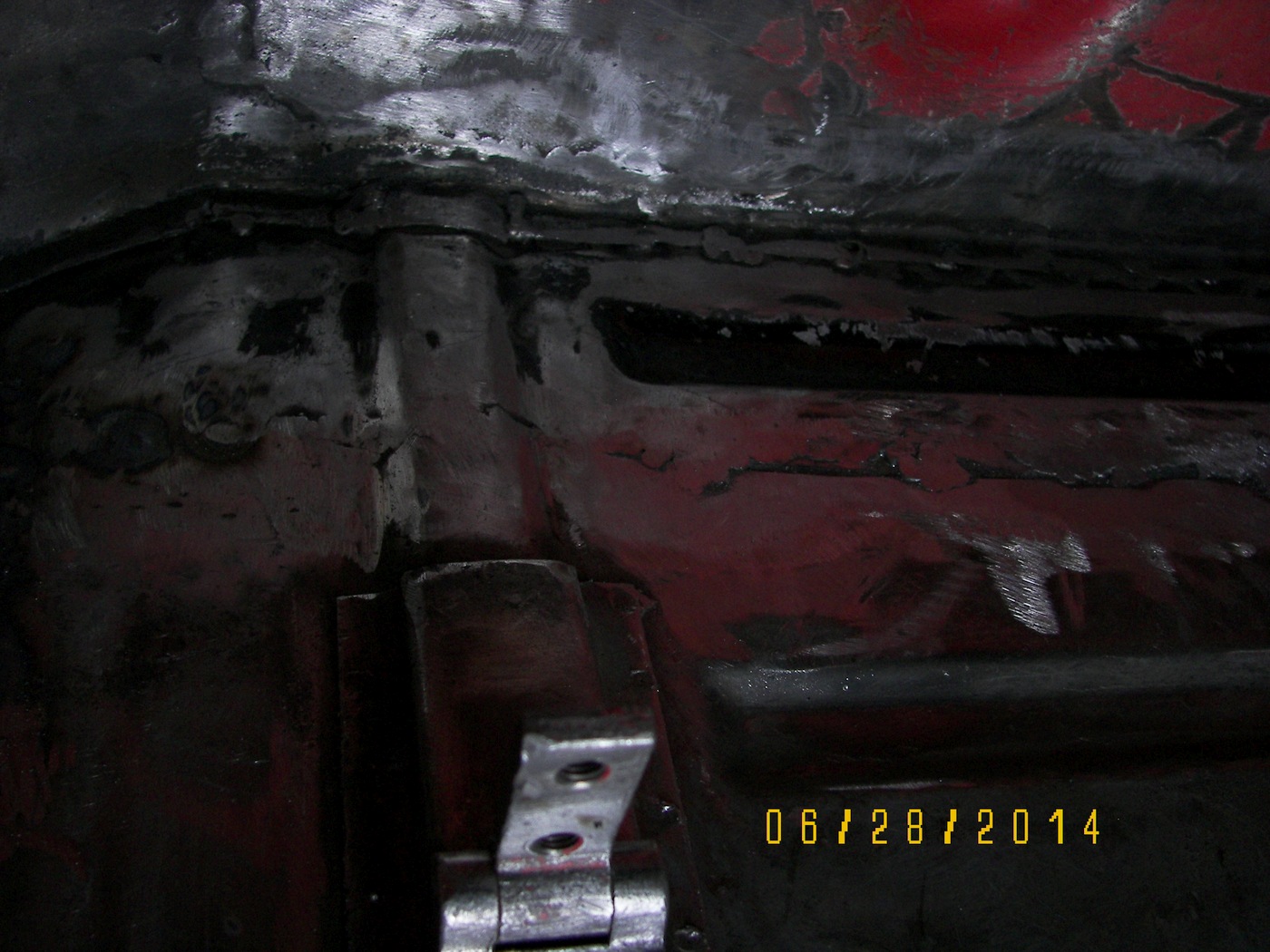

Pre-grind mode...

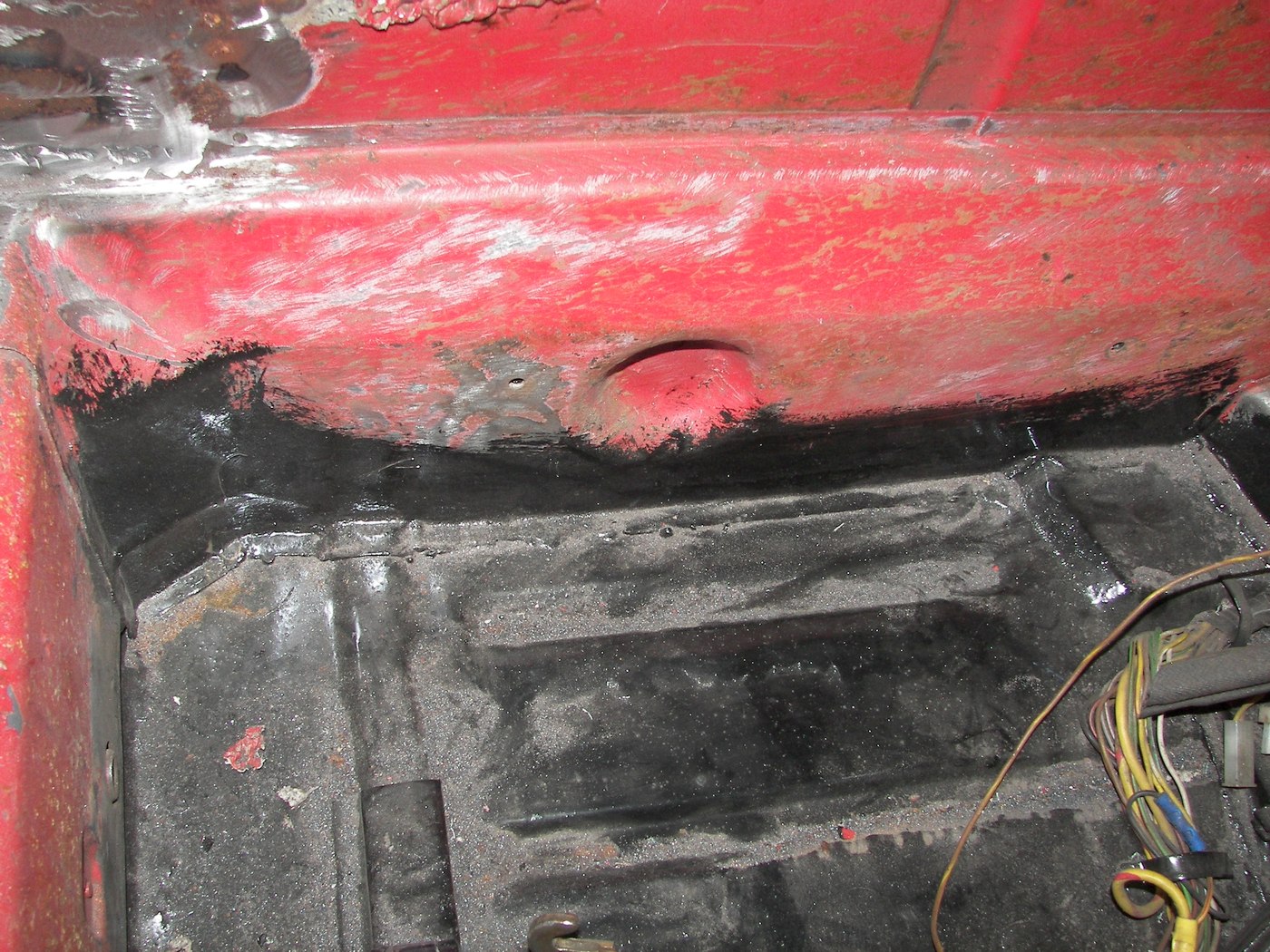

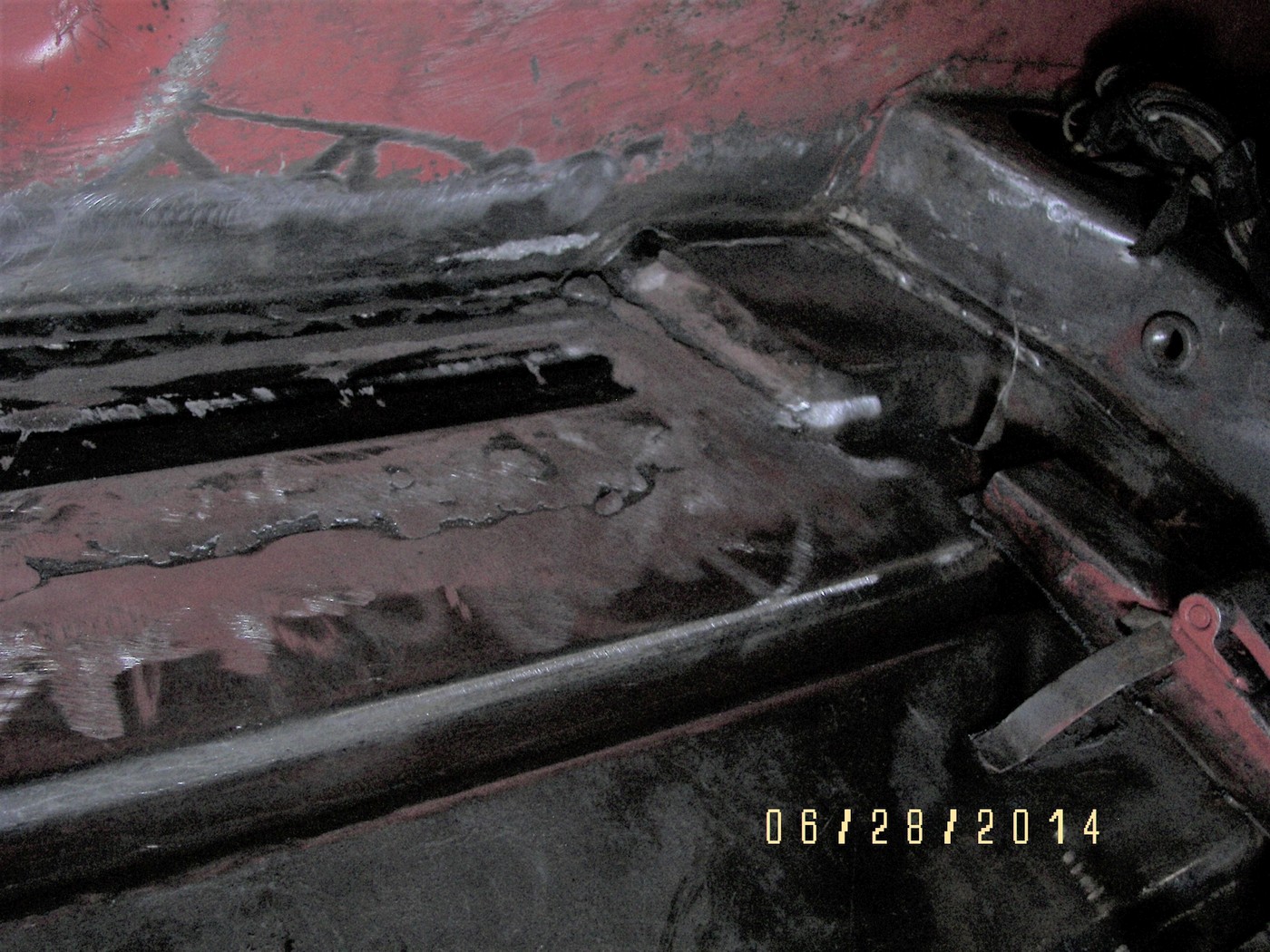

Cleaned up a bit.  Took a light under the pan to see a few pinholes, but it was tight when I finished.

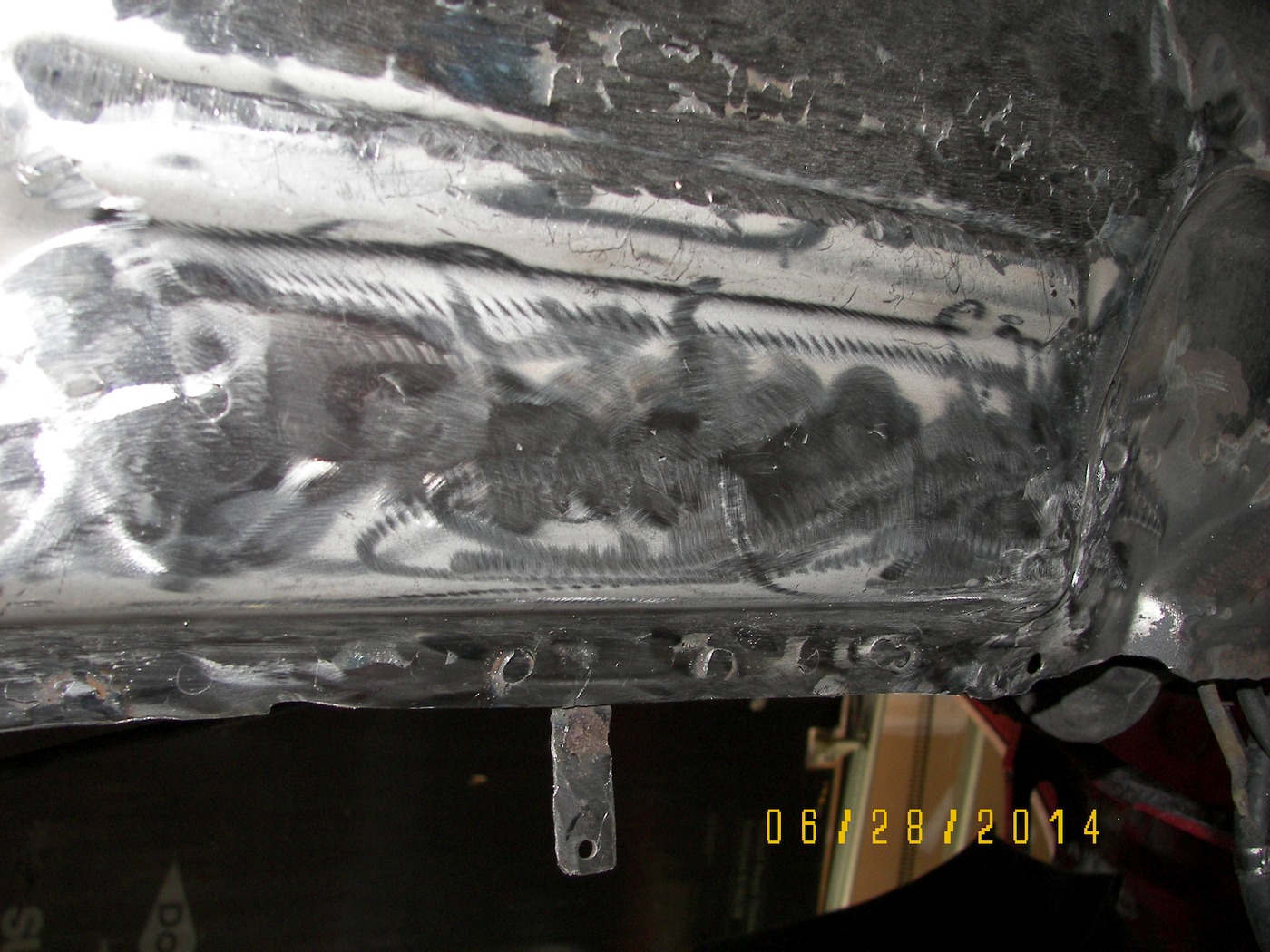

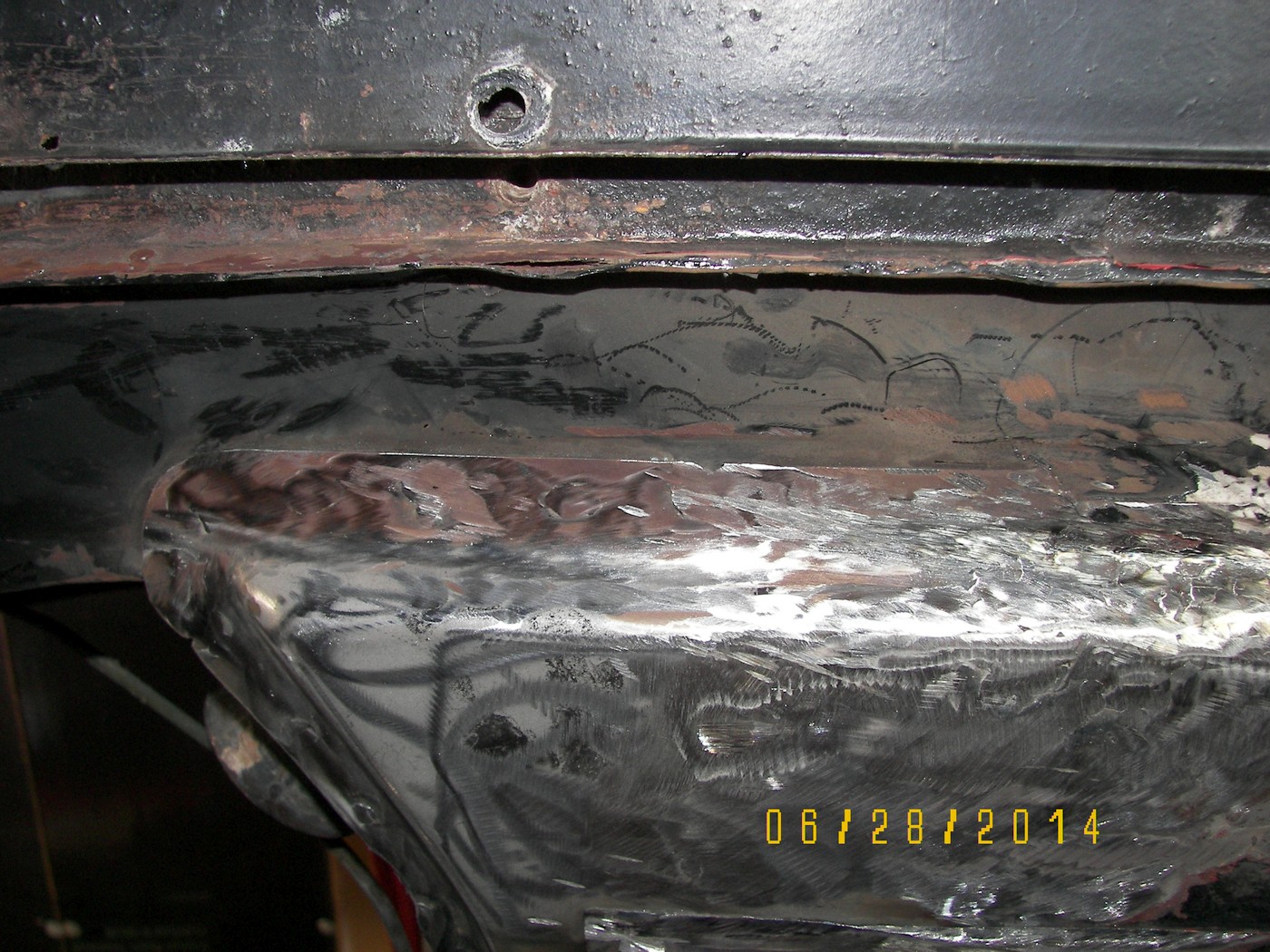

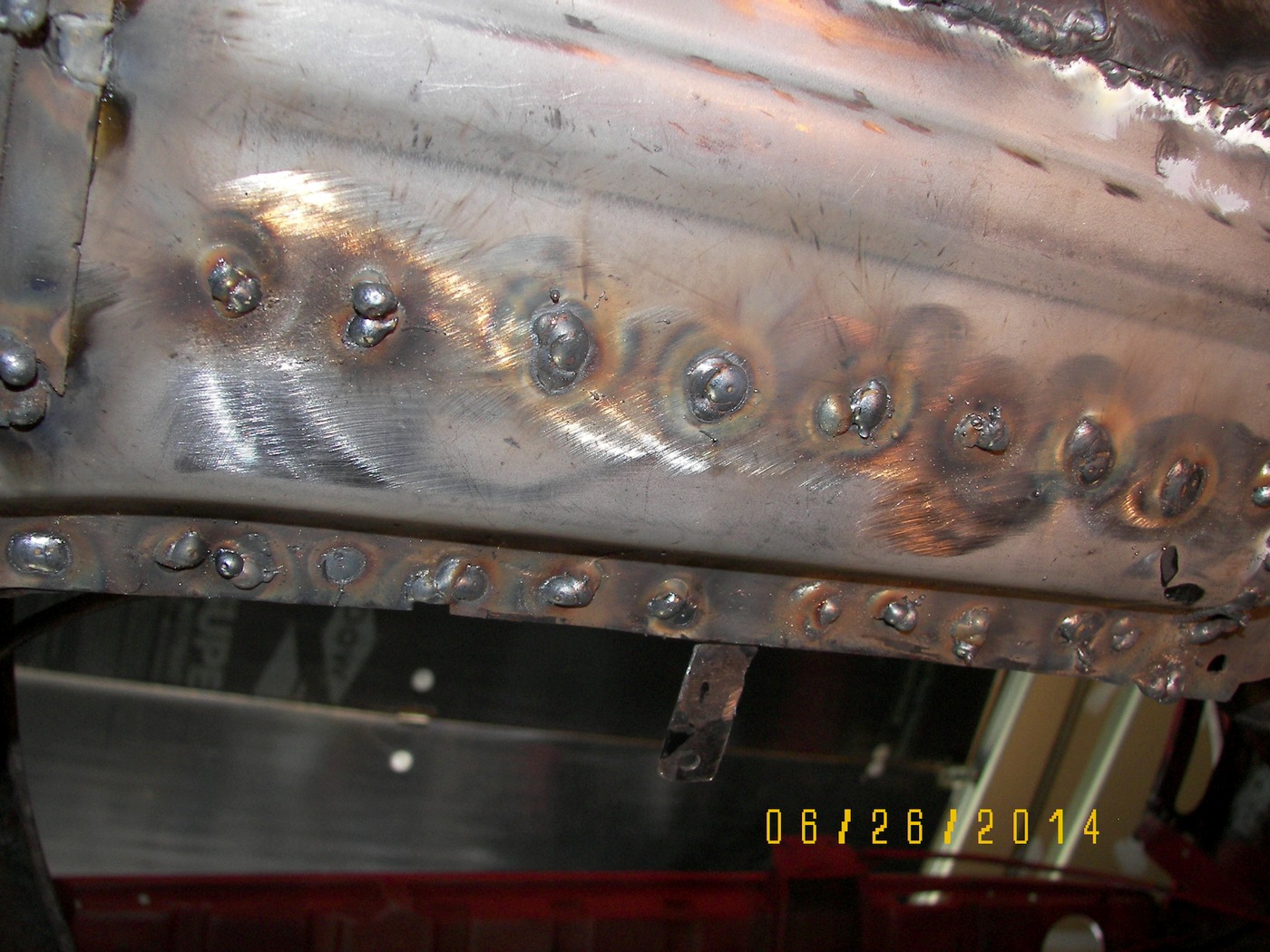

Floorpan along side of the passenger long as seen from underneath:





Underneath after so
